DMN21D2UFB Datasheet - Diodes Incorporated

20V N-CHANNEL MOSFET

DMN21D2UFB Features

* Low On-Resistance Very low Gate Threshold Voltage, 1.0V max Low Input Capacitance Fast Switching Speed Ultra-Small Surface Mount Package 1mm x 0.6mm Low Package Profile, 0.5mm Maximum Package height E

DMN21D2UFB General Description

and Applications This MOSFET has been designed to minimize the on-state resistance (RDS(on)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications. * * * General Purpose Interfacing Switch Power Management Functions.

DMN21D2UFB Datasheet (219.64 KB)

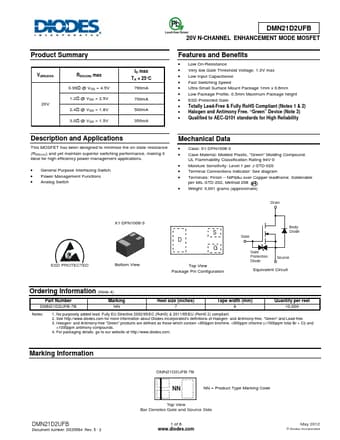

DMN21D2UFB Datasheet Preview — Preview of DMN21D2UFB PDF

Datasheet Details

Part number:

DMN21D2UFB

Manufacturer:

DIODES ↗ Incorporated

File Size:

219.64 KB

Description:

20v n-channel mosfet.
DMN21D2UFB 20V N-CHANNEL ENHANCEMENT MODE MOSFET Product Summary NEW PRODUCT ADVANCE INFORMATION ADVANCE INFORMATION V(BR)DSS RDS(ON) max 0.99Ω @ VGS.
