MM74C373, 3-STATE Octal D-Type Latch

The MM74C373 and MM74C374 are integrated, complementary MOS (CMOS), 8-bit storage elements with 3STATE outputs. These outputs have been specially designed to drive high capacitive loads, such as one might find when driving a bus, and to have a fan out of 1 when driving standard TTL. When a high logi.

MM74C373_FairchildSemiconductor.pdf

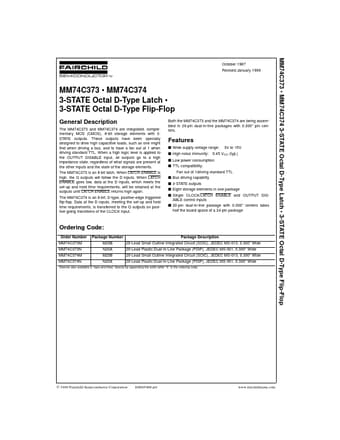

MM74C373 Datasheet Preview — Preview of MM74C373 PDF

Datasheet Details

Part number:

MM74C373

Manufacturer:

Fairchild

File Size:

113.45 KB

Description:

3-STATE Octal D-Type Latch

MM74C373 Features

* s Wide supply voltage range: s High noise immunity: s TTL compatibility: Fan out of 1driving standard TTL s Bus driving capability s 3-STATE outputs s Eight storage elements in one package s Single CLOCK/LATCH ENABLE and OUTPUT DISABLE control inputs s 20-pin dual-in-line package with 0.300” centers
