SSF6014, SSF6014-GOOD N-Channel MOSFET

SSF6014 Description

SSF6014 60V N-Channel MOSFET .
The SSF6014 is a new generation of middle voltage and high current N. Channel enhancement mode trench power MOSFET.

SSF6014 Features

* Advanced trench process technology
* avalanche energy, 100% test
* Fully characterized avalanche voltage and current

SSF6014 Applications

* Power switching application SSF6014 Top View (TO-220) Absolute Maximum Ratings Parameter ID@Tc=25ْ C Continuous drain current,VGS@10V ID@Tc=100Cْ Continuous drain current,VGS@10V IDM Pulsed drain current ① Power dissipation PD@TC=25ْC Linear derating factor VGS Gate-to-Source voltage EA

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SSF6014, SSF6014-GOOD. Please refer to the document for exact specifications by model.

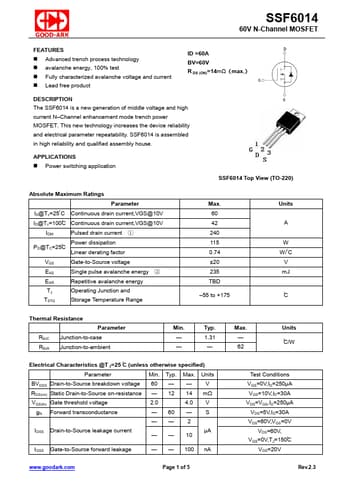

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SSF6014, SSF6014-GOOD
Manufacturer
GOOD-ARK
File Size
1.01 MB
Datasheet
SSF6014-GOOD-ARK.pdf
Description
N-Channel MOSFET
Note
This datasheet PDF includes multiple part numbers: SSF6014, SSF6014-GOOD.
Please refer to the document for exact specifications by model.
