HM50P03K Datasheet - H&M Semiconductor

HM50P03K P-Channel Enhancement Mode Power MOSFET

HM50P03K Features

* VDS = -30V,ID = -50A RDS(ON) < 17mΩ @ VGS=-4.5V RDS(ON) < 10mΩ @ VGS=-10V

* High Power and current handing capability

* Lead free product is acquired

* Surface Mount Package Application

* Battery Switch

* Load switch

* Power management HM50P03K D G S Schematic diagram HM5

HM50P03K Datasheet (674.94 KB)

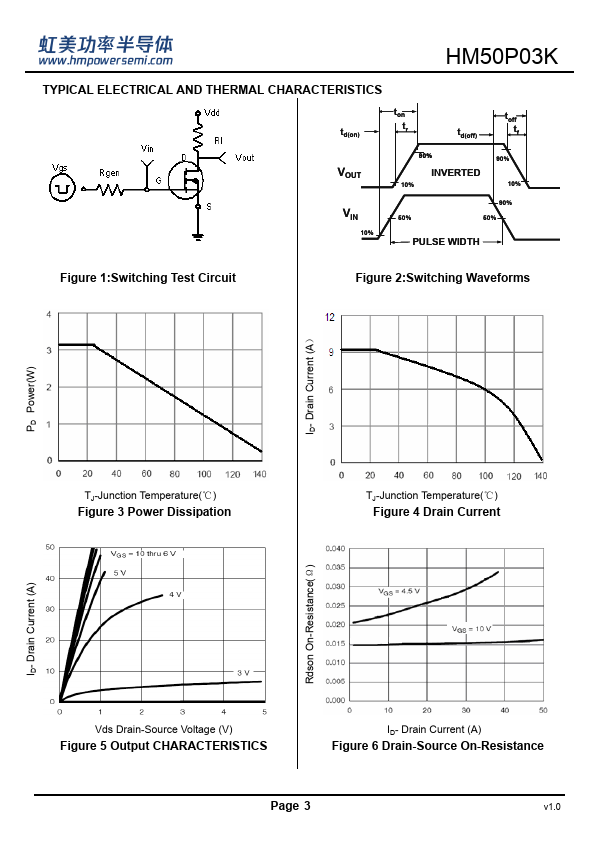

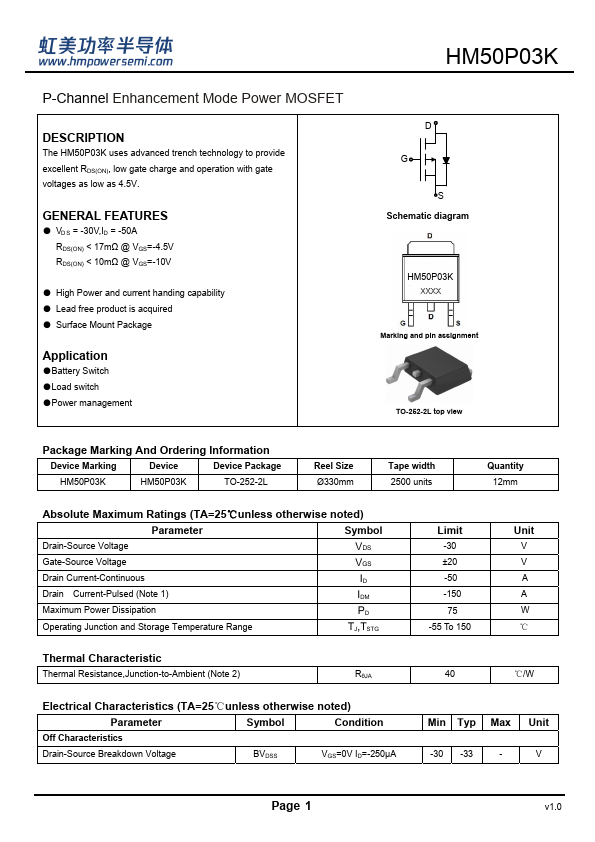

Preview of HM50P03K PDF

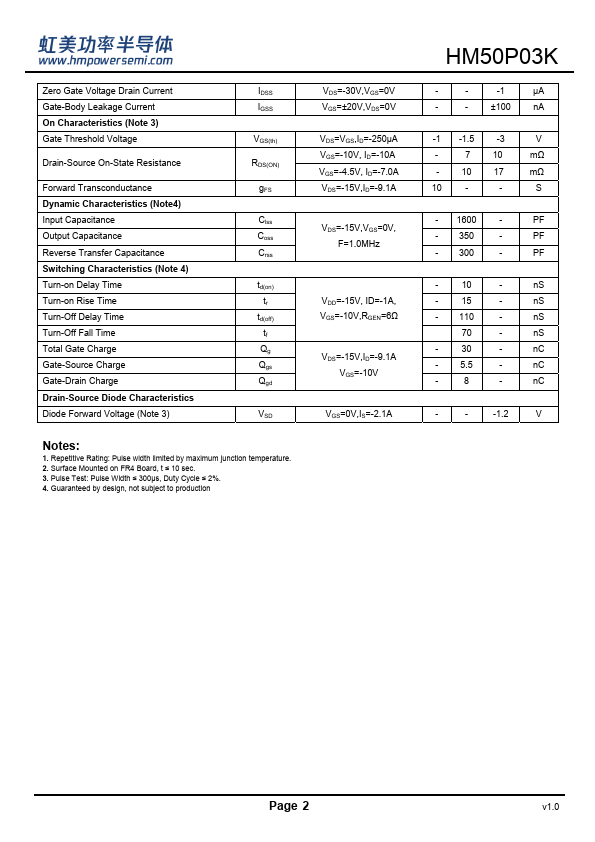

HM50P03K Datasheet Preview Page 2 HM50P03K Datasheet Preview Page 3

Datasheet Details

Part number:

HM50P03K

Manufacturer:

H&M Semiconductor

File Size:

674.94 KB

Description:

P-channel enhancement mode power mosfet.
