HM9N50K Datasheet - H&M Semiconductor

HM9N50K 500V N-Channel MOSFET

This Power MOSFET is produced using SL semi‘s advanced planar stripe DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. These devices ar.

HM9N50K Features

* 9A, 500V, RDS(on) = 0.95Ω @VGS = 10 V

* Low gate charge ( typical 16nC)

* High ruggedness

* Fast switching

* 100% avalanche tested

* Improved dv/dt capability {D

* TO-252 TO-251 ◀▲ {G

* {S Absolute Maximum Ratings TC = 25°Cunl

HM9N50K Datasheet (703.89 KB)

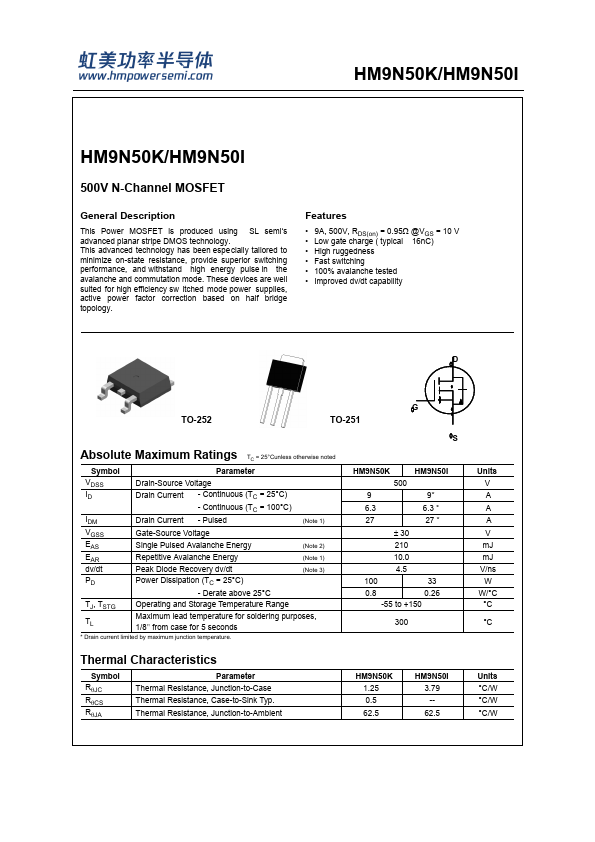

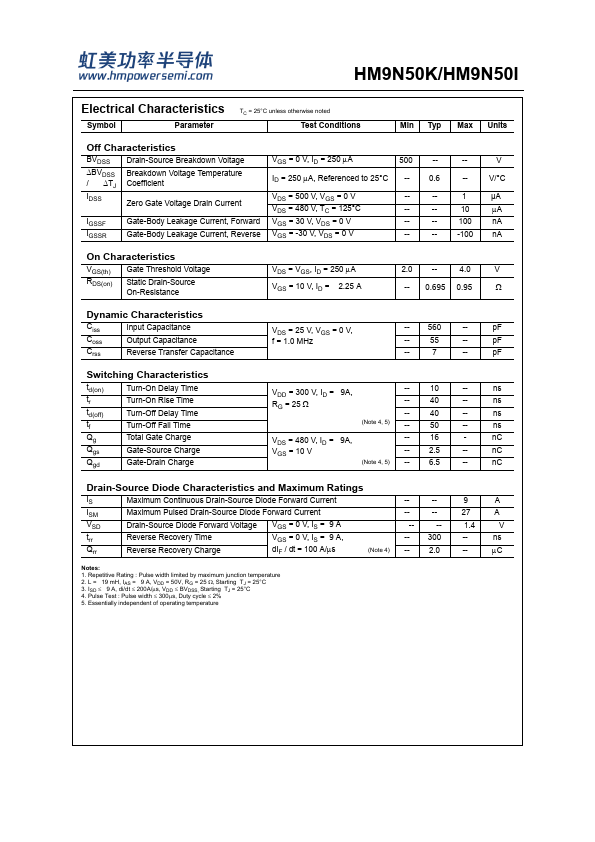

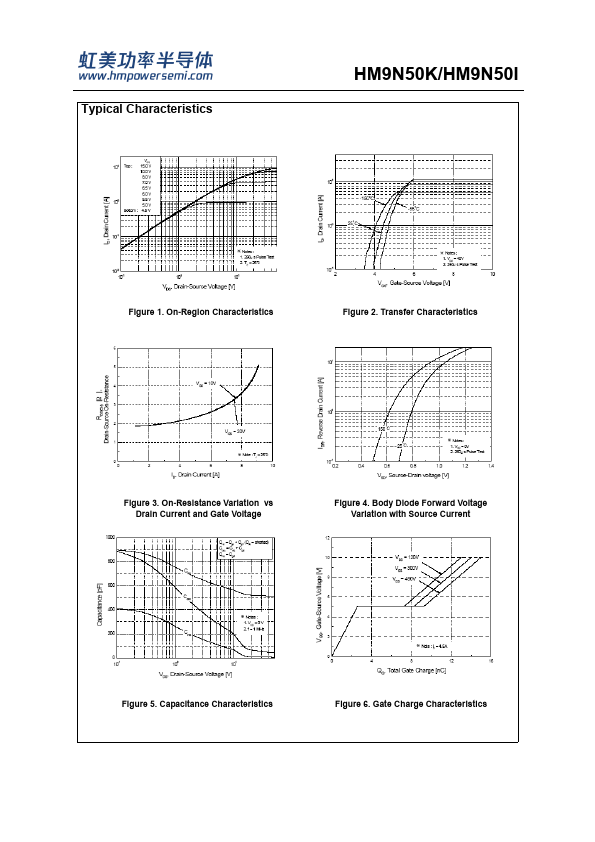

HM9N50K Datasheet Preview — Preview of HM9N50K PDF

Datasheet Details

Part number:

HM9N50K

Manufacturer:

H&M Semiconductor

File Size:

703.89 KB

Description:

500v n-channel mosfet.
