BT169D, BT169, SCRs

Glass passivated, sensitive gate thyristors in a plastic envelope, intended for use in general purpose switching and phase control applications. These devices are intended to be interfaced directly to microcontrollers, logic integrated circuits and other low power gate trigger circuits. Symbol Sim.

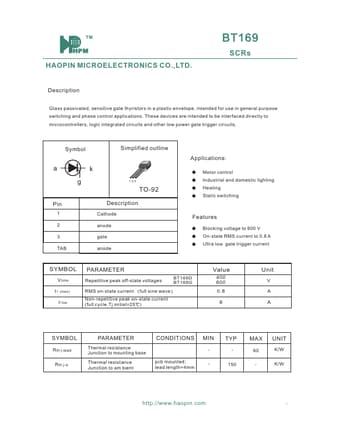

datasheet Preview Page 1 from Datasheet4u.com

BT169-HAOPIN.pdf

BT169D Datasheet Preview — This datasheet PDF includes multiple part numbers: BT169D, BT169. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BT169D, BT169

Manufacturer:

HAOPIN

File Size:

205.94 KB

Description:

SCRs

Note:

This datasheet PDF includes multiple part numbers: BT169D, BT169.
Please refer to the document for exact specifications by model.

BT169D Features

* Blocking voltage to 600 V On-state RMS current to 0.8 A Ultra low gate trigger current SYMBOL VDRM IT RMS ITSM PARAMETER Repetitive peak off-state voltages BT169D BT169G RMS on-state current full sine wave Non-repetitive peak on-state current (full cycle,Tj initial=25 ) Value 400 600 0.8 8 Un
