BT169G - SCRs

This page provides the datasheet information for the BT169G, a member of the BT169 SCRs family.

Datasheet Summary

Description

Glass passivated, sensitive gate thyristors in a plastic envelope, intended for use in general purpose switching and phase control applications.

These devices are intended to be interfaced directly to microcontrollers, logic integrated circuits and other low power gate trigger circuits.

Features

Blocking voltage to 600 V On-state RMS current to 0.8 A Ultra low gate trigger current SYMBOL VDRM IT RMS ITSM.

HAOPIN

📥 Download Datasheet

Datasheet Details

Part number	BT169G
Manufacturer	HAOPIN
File Size	205.94 KB
Description	SCRs
Datasheet	BT169G Datasheet
Additional preview pages of the BT169G datasheet.

📁 Similar Datasheet

BT169G - SCR (WeEn)
BT169G - Thyristors (INCHANGE)
BT169G - Thyristor (NXP)
BT169G-L - SCR (WeEn)
BT169G-M - SCR (WeEn)
BT169GW - Thyristors (INCHANGE)
BT169 - Thyristor (NXP)
BT169 - SCR (Unisonic Technologies)
BT169 - SCR Thyristor (Kexin)
BT169 - Thyristor (TGS)

Other Datasheets by HAOPIN

BT169 - SCRs
BT169D - SCRs
BT131-600 - Sensitive Gate Triacs
BT131-8D - Sensitive Gate Triacs
BT134-600D - Sensitive Gate Triacs
BT134-600E - Sensitive Gate Triacs
BT136-600D - Sensitive Gate Triacs
BT136-600E - Sensitive Gate Triacs

Full PDF Text Transcription

Click to expand full text

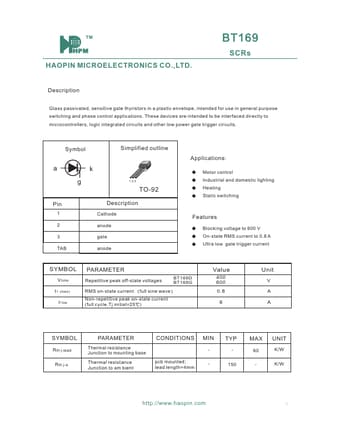

TM HPM HAOPIN MICROELECTRONICS CO.,LTD. BT169 SCRs Description Glass passivated, sensitive gate thyristors in a plastic envelope, intended for use in general purpose switching and phase control applications. These devices are intended to be interfaced directly to microcontrollers, logic integrated circuits and other low power gate trigger circuits. Symbol Simplified outline a Pin 1 2 3 TAB k g 123 TO-92 Description Cathode anode gate anode Applications: Motor control Industrial and domestic lighting Heating Static switching Features Blocking voltage to 600 V On-state RMS current to 0.
