NE555 - CMOS GENERAL PURPOSE TIMER

Description

The NE555 is CMOS RC timers providing significantly improved performance over the standard SE/NE555 and 355 timers, while at the same time being direct replacements for those devices in most applications.

Features

  • Exact equivalent in most cases for SE/NE555.
  • Low Supply Current.
  • High speed operation.
  • 500KHz guaranteed.
  • Wide operation supply voltage range - 2V to 18V.
  • Timing from microseconds through hours.
  • Operates in both astable and monostable modes.
  • Adjustable duty cycle.
  • High output source/sink driver can drive TTL/CMOS NE555 SOP-8 DIP-8.

📥 Download Datasheet

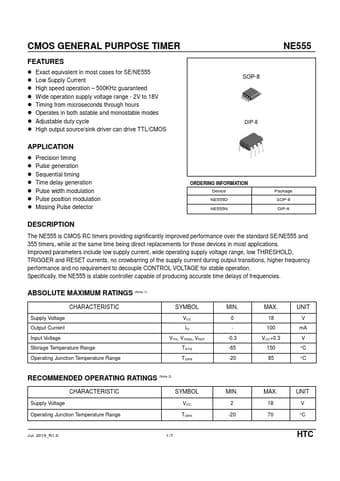

Datasheet preview – NE555

Datasheet Details

Part number NE555
Manufacturer HTC KOREA
File Size 152.57 KB
Description CMOS GENERAL PURPOSE TIMER
Datasheet download datasheet NE555 Datasheet
Additional preview pages of the NE555 datasheet.

📁 Similar Datasheet

  • NE555 - Precision Timer (Texas Instruments)
  • NE555 - General-purpose single bipolar timer (ST Microelectronics)
  • NE555 - Single Timer (Fairchild)
  • NE555 - Precision Timer (Diodes)
  • NE555 - SINGLE TIMER (UTC)
  • NE5550234 - Silicon Power MOSFET (Renesas)
  • NE5550279A - Silicon Power LDMOS FET (Renesas)
  • NE5550779A - Silicon Power LDMOS FET (Renesas)
  • NE5550979A - Silicon Power LDMOS FET (Renesas)
  • NE5551 - Voltage Regulator (ITT)
Other Datasheets by HTC
  • NE555D - CMOS GENERAL PURPOSE TIMER
  • NE555N - CMOS GENERAL PURPOSE TIMER

Full PDF Text Transcription

Click to expand full text
CMOS GENERAL PURPOSE TIMER FEATURES  Exact equivalent in most cases for SE/NE555  Low Supply Current  High speed operation – 500KHz guaranteed  Wide operation supply voltage range - 2V to 18V  Timing from microseconds through hours  Operates in both astable and monostable modes  Adjustable duty cycle  High output source/sink driver can drive TTL/CMOS NE555 SOP-8 DIP-8 APPLICATION  Precision timing  Pulse generation  Sequential timing  Time delay generation  Pulse width modulation  Pulse position modulation  Missing Pulse detector ORDERING INFORMATION Device NE555D NE555N Package SOP-8 DIP-8 DESCRIPTION The NE555 is CMOS RC timers providing significantly improved performance over the standard SE/NE555 and 355 timers, while at the same time being direct replacements for t
