HX3402S N-Channel MOSFET

HX3402S Description

SOT-23-3 Plastic-Encapsulate Transistors HX3402S MOSFET(N-Channel) .

HX3402S Features

* TrenchFET Power MOSFET Load Switch for Portable Devices DC/DC Converter MARKING: A29T MAXIMUM RATINGS (TA=25℃ unless otherwise noted) Symbol Parameter Value Units VDS Drain-Source voltage 20 V VGS Gate-Source voltage ±8 V ID Drain current 3.6 A PD Power Dissipation 1W Tj Junction Temp

📥 Download Datasheet

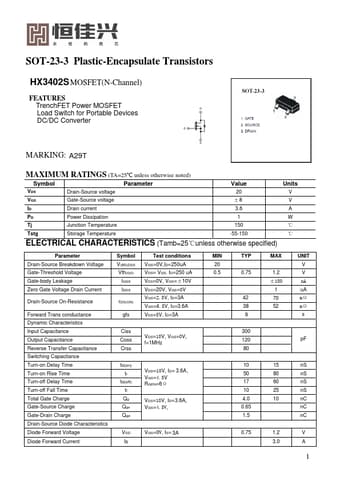

Preview of HX3402S PDF

Datasheet Details

Part number
HX3402S
Manufacturer
HXDZ
File Size
250.54 KB
Datasheet
HX3402S-HXDZ.pdf
Description
N-Channel MOSFET
