MK0540 - High Power RF LDMOS FET

Innogration

The MK0540 by Innogration is a High Power RF LDMOS FET. Below is the official datasheet preview.

📥 Download Datasheet

MK0540 High Power RF LDMOS FET by Innogration - Datasheet Preview — Official preview page of the **MK0540** High Power RF LDMOS FET datasheet (Innogration).

Datasheet Details

Part number	MK0540
Manufacturer	Innogration
File Size	481.93 KB
Description	High Power RF LDMOS FET
Datasheet	MK0540-Innogration.pdf

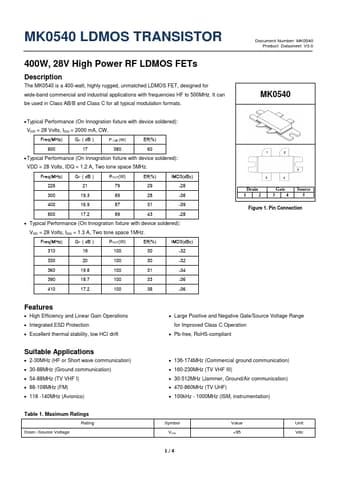

Additional preview pages of the MK0540 datasheet.

MK0540 Product details

Description

The MK0540 is a 400-watt, highly rugged, unmatched LDMOS FET, designed for wide-band commercial and industrial applications with frequencies HF to 500MHz. Typical Performance (On Innogration fixture with device soldered): VDD = 28 Volts, IDQ = 2000 mA, CW.Freq(MHz) GP（dB） P-1dB (W) Eff(%) 500 17 380 60 Typical Performance (On Innogration fixtur

Features

High Efficiency and Linear Gain Operations.
Integrated ESD Protection.
Excellent thermal stability, low HCI drift.
Large Positive and Negative Gate/Source Voltage Range for Improved Class C Operation.
Pb-free, RoHS-compliant Suitable.
