MPQ2143DJ, MPQ2143, Synchronous Step-Down Switcher

The MPQ2143 is a monolithic, step-down, switch-mode converter with internal power MOSFETs. It can achieve up to 3A continuous output current from a 2.5V *to-5.5V input voltage with excellent load and line regulation. The output voltage can be regulated as low as 0.6V. Constant-on-time control.

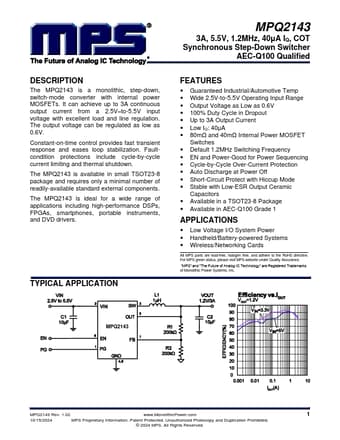

Datasheet Preview Page 1

MPQ2143-MPS.pdf

MPQ2143DJ Datasheet Preview — This datasheet PDF includes multiple part numbers: MPQ2143DJ, MPQ2143. Please refer to the document for exact specifications by model.

MPQ2143DJ Datasheet Preview Page 2

MPQ2143DJ Datasheet Preview Page 3

Datasheet Details

Part number:

MPQ2143DJ, MPQ2143

Manufacturer:

MPS

File Size:

760.68 KB

Description:

Synchronous Step-Down Switcher

Note:

This datasheet PDF includes multiple part numbers: MPQ2143DJ, MPQ2143.
Please refer to the document for exact specifications by model.

MPQ2143DJ Features

* Guaranteed Industrial/Automotive Temp

* Wide 2.5V-to-5.5V Operating Input Range

* Output Voltage as Low as 0.6V

* 100% Duty Cycle in Dropout

* Up to 3A Output Current

* Low IQ: 40µA

* 80mΩ and 40mΩ Internal Power MOSFET Switches

* Def
