CM150DU-24H, Dual IGBT Module

Powerex IGBTMOD™ Modules are designed for use in switching applications. Each module consists of two IGBT Transistors in a halfbridge configuration with each transistor having a reverse-connected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinki.

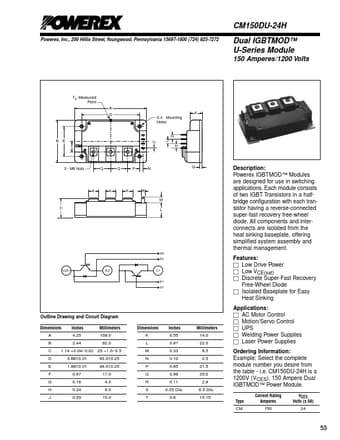

Datasheet Preview Page 1

CM150DU-24H_PowerexPowerSemiconductors.pdf

CM150DU-24H Datasheet Preview — Preview of CM150DU-24H PDF

CM150DU-24H Datasheet Preview Page 2

CM150DU-24H Datasheet Preview Page 3

Datasheet Details

Part number:

CM150DU-24H

Manufacturer:

Powerex Power Semiconductors

File Size:

58.01 KB

Description:

Dual IGBT Module

CM150DU-24H Features

* Low Drive Power

* Low VCE(sat)

* Discrete Super-Fast Recovery Free-Wheel Diode

* Isolated Baseplate for Easy Heat Sinking Applications:

* AC Motor Control

* Motion/Servo Control

* UPS

* Welding Power Supplies

* Laser Power Su
