BU2501FV Datasheet - Rohm

8bit 12-channel D/A converter

BU2501FV Features

* 1) High-performance 8bit 12-channel D/A converter adopting the R-2R system. 2) Output of each channel incorporates a Rail to Rail output type buffer amplifier. 3) Digital input compatible with TTL levels. 4) 12bit 3wire serial data input, cascade connection is possible. 5) Buffer amplifier of each c

BU2501FV General Description

Pin No. Pin name 1 Vss 2 Ao3 3 Ao4 4 Ao5 5 Ao6 6 Ao7 7 Ao8 8 Ao9 9 Ao10 10 VDD 11 Vcc 12 Ao11 13 Ao12 14 Do 15 LD 16 CLK 17 DI 18 Ao1 19 Ao2 20 GND Analog / Digital Analog Analog Analog Analog Analog Analog Analog Analog Analog Analog * Analog Analog Digital Digital Digital Digital Analog .

BU2501FV Datasheet (46.57 KB)

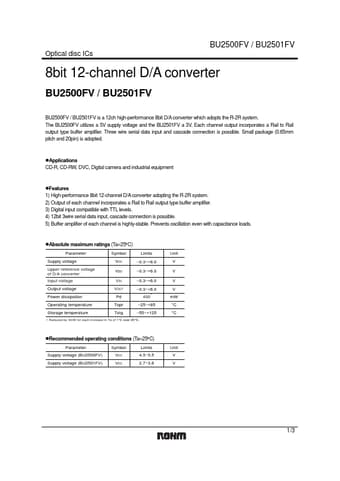

Preview of BU2501FV PDF

Datasheet Details

Part number:

BU2501FV

Manufacturer:

ROHM ↗

File Size:

46.57 KB

Description:

8bit 12-channel d/a converter.
Optical disc ICs BU2500FV / BU2501FV 8bit 12-channel D/A converter BU2500FV / BU2501FV BU2500FV / BU2501FV is a 12ch high-performance 8bit D/A con.
