SiLM27511H, Low-Side Gate Driver

The SiLM27511H series single-channel, high-speed, low-side gate driver devices can effectively drive MOSFET and IGBT power switches. Using a design that inherently minimizes shoot-through current, SiLM27511H series products can source and sink high peak-current pulses into capacitive loads offering .

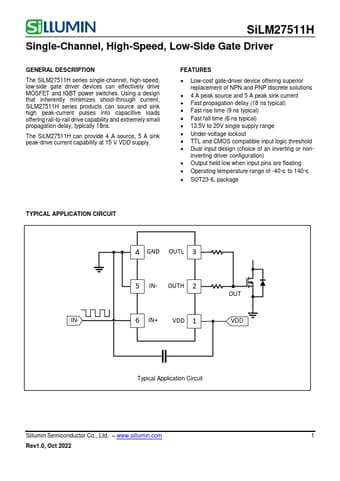

Datasheet Preview Page 1

SiLM27511H-Sillumin.pdf

SiLM27511H Datasheet Preview — Preview of SiLM27511H PDF

SiLM27511H Datasheet Preview Page 2

SiLM27511H Datasheet Preview Page 3

Datasheet Details

Part number:

SiLM27511H

Manufacturer:

Sillumin

File Size:

624.01 KB

Description:

Low-Side Gate Driver

SiLM27511H Features

* Low-cost gate-driver device offering superior replacement of NPN and PNP discrete solutions

* 4 A peak source and 5 A peak sink current

* Fast propagation delay (18 ns typical)

* Fast rise time (9 ns typical)

* Fast fall time (6 ns typical)

* 13.5V to 20V single supply rang
