UTG80N65-S Datasheet - UTC

650V TRENCH GATE FIELD-STOP IGBT

UTG80N65-S Features

* High switching speed

* High avalanche ruggedness

* Low saturation voltage: VCE(SAT).Typ.= 1.65V @ IC=80A, VGE=15V (TC =25°C)

* SYMBOL

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free UTG80N65L-T47-T UTG80N65G-T47-T Note: Pin Assignment: G: Gate C: Collector

UTG80N65-S General Description

The UTC UTG80N65-S is an Trench Field-Stop Insulated Gate Bipolar Transistor. it uses UTC’s advanced technology to provide customers with high switching speed, low saturation voltage and low switching loss, etc. The UTC UTG80N65-S is suitable for the resonant or soft switching applications. * FE.

UTG80N65-S Datasheet (716.13 KB)

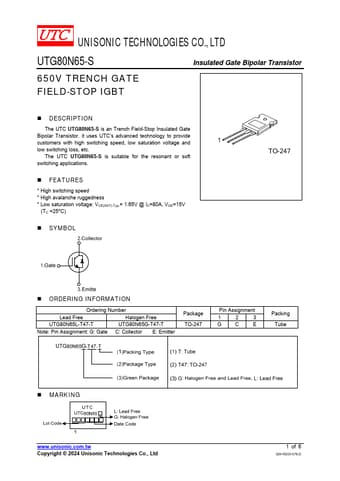

Preview of UTG80N65-S PDF

Datasheet Details

Part number:

UTG80N65-S

Manufacturer:

UTC

File Size:

716.13 KB

Description:

650v trench gate field-stop igbt.
