WSD3045DN33 Datasheet - Winsok

WSD3045DN33, N-Ch and P-Channel MOSFET

The WSD3045DN33 is the highest performance trench N-Ch and P-Channel MOSFETs with extreme high cell density, which provide excellent RDS(ON) and gate charge for most of the synchronous buck converter applications. The WSD3045DN33 meet the RoHS and Green Product requirement, 100% EAS guaranteed with .

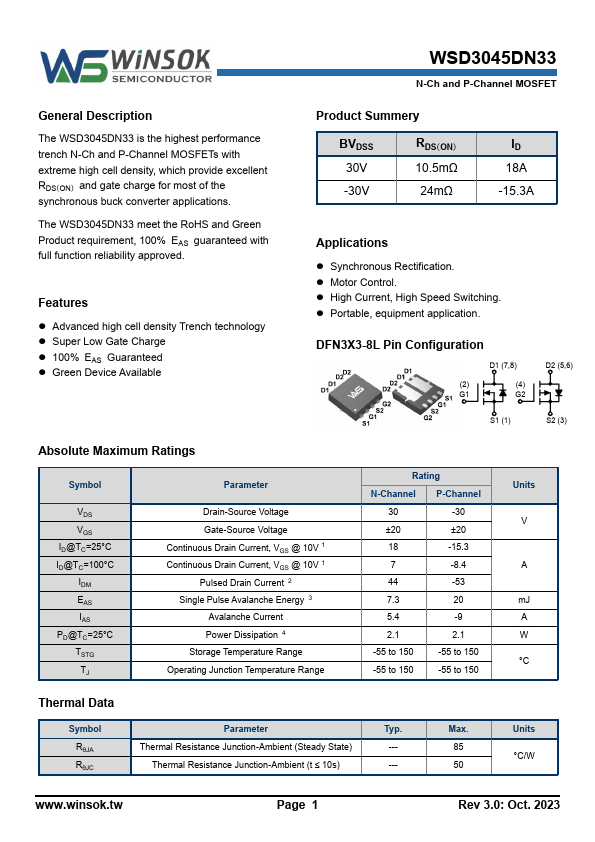

Datasheet Preview Page 1

WSD3045DN33-Winsok.pdf

WSD3045DN33 Datasheet Preview — Preview of WSD3045DN33 PDF

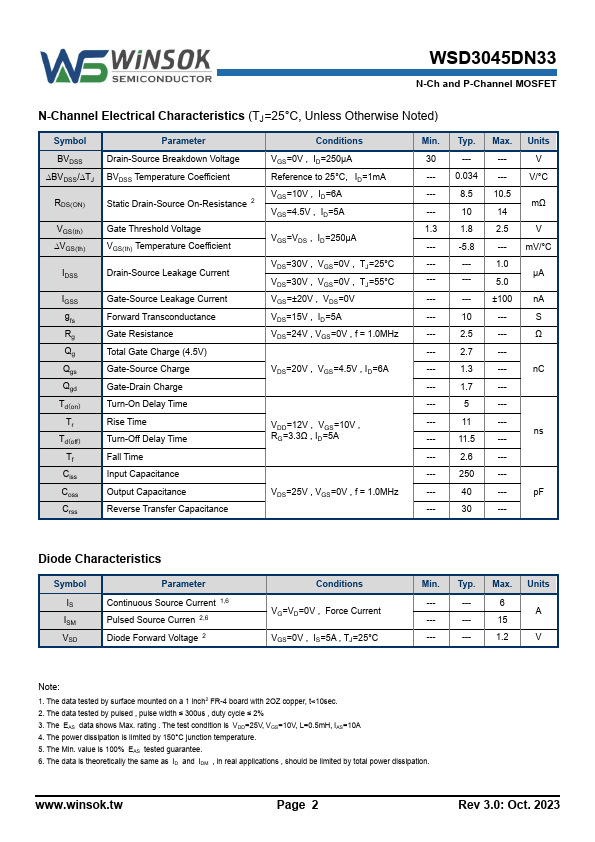

WSD3045DN33 Datasheet Preview Page 2

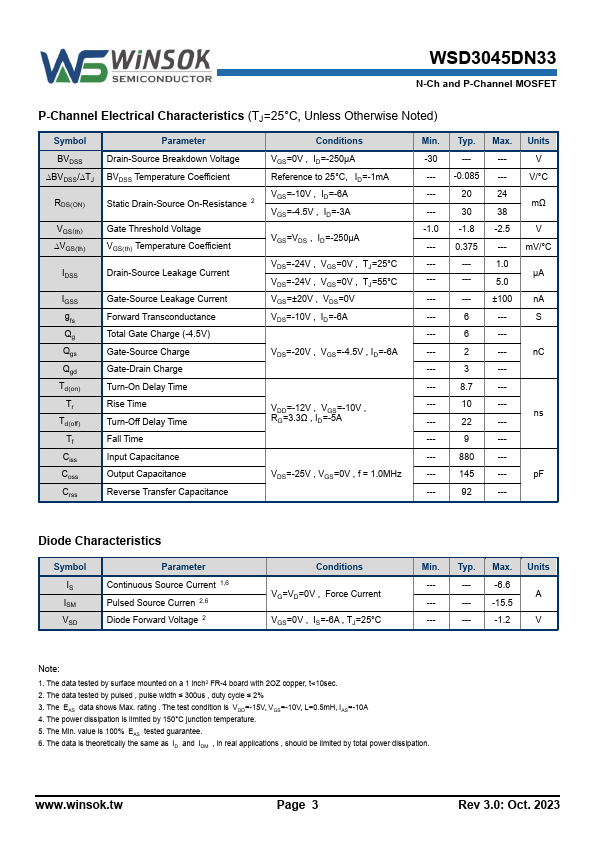

WSD3045DN33 Datasheet Preview Page 3

Datasheet Details

Part number:

WSD3045DN33

Manufacturer:

Winsok

File Size:

521.84 KB

Description:

N-Ch and P-Channel MOSFET

WSD3045DN33 Features

* Advanced high cell density Trench technology

* Super Low Gate Charge

* 100% EAS Guaranteed

* Green Device Available Product Summery BVDSS 30V -30V RDS(ON) 10.5mΩ 24mΩ ID 18A -15.3A Applications

* Synchronous Rectification.

* Motor Control.

* High Current, High Spee
