WSP14N10 Datasheet - Winsok

WSP14N10 N-Ch MOSFET

The WSP14N10 is the highest performance trench N-Ch MOSFET with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications . The WSF14N10 meet the RoHS and Green Product requirement , 100% EAS guaranteed with full function reliab.

WSP14N10 Features

* z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent Cdv/dt effect decline z Green Device Available WSP14N10 N-Ch MOSFET Product Summery BVDSS 100V RDSON 16mΩ Applications Load switch Battery protection Uninterruptible power supply SOP-8L Pin Configuration ID 14A

WSP14N10 Datasheet (2.30 MB)

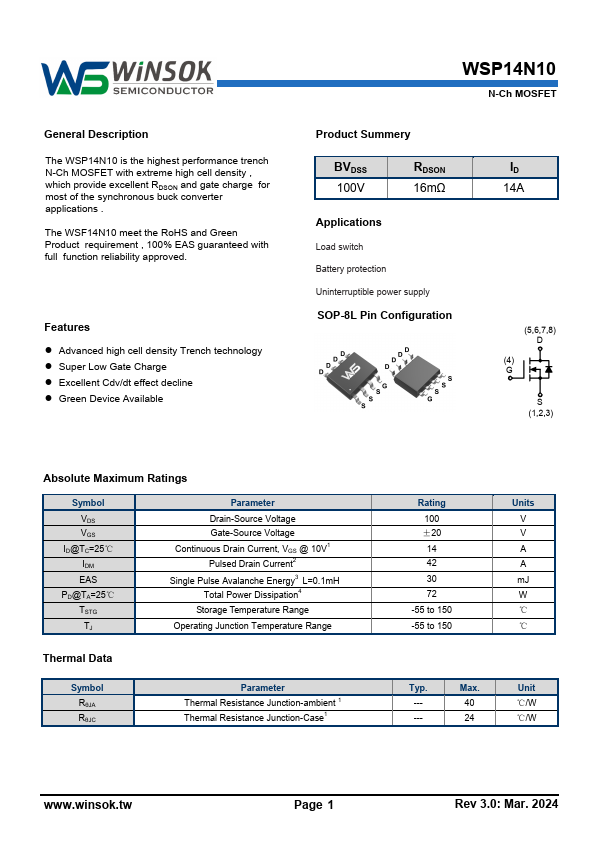

Preview of WSP14N10 PDF

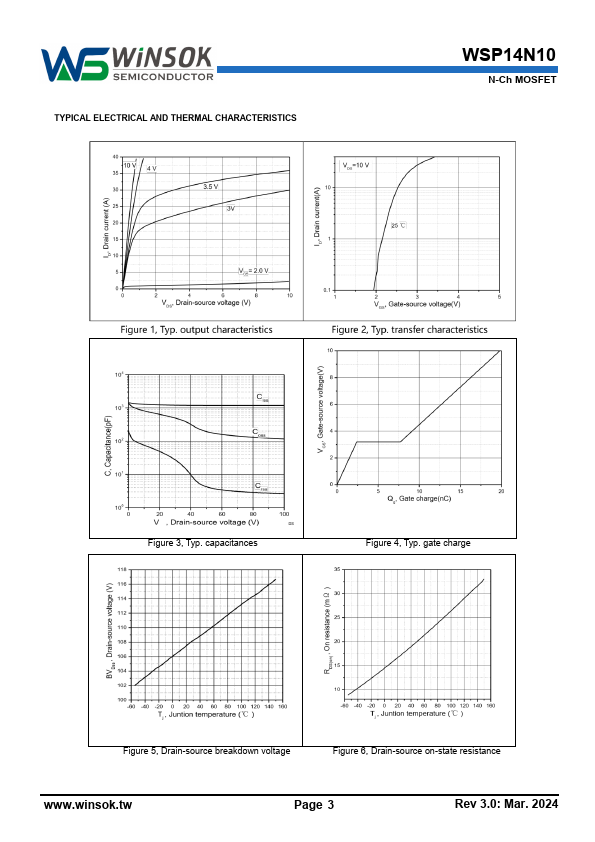

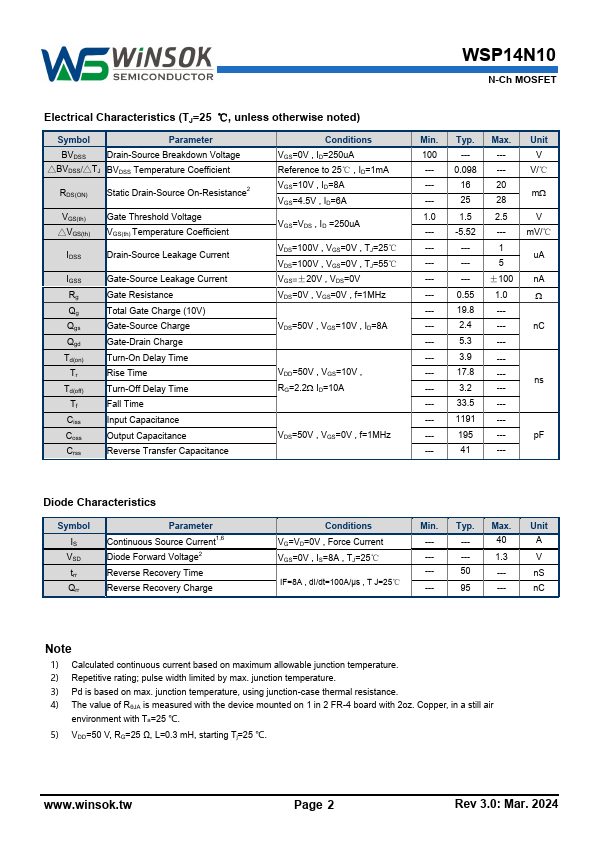

WSP14N10 Datasheet Preview Page 2 WSP14N10 Datasheet Preview Page 3

Datasheet Details

Part number:

WSP14N10

Manufacturer:

Winsok

File Size:

2.30 MB

Description:

N-ch mosfet.
