WSP4953A Datasheet - Winsok

WSP4953A Dual P-Ch MOSFET

The WSP4953A is the highest performance trench P-ch MOSFETs with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications . The WSP4953A meet the RoHS and Green Product requirement with full function reliability approved. Featu.

WSP4953A Features

* z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent CdV/dt effect decline z Green Device Available Product Summery BVDSS -20V RDSON 40mΩ ID -5.8A Applications z High Frequency Point-of-Load Synchronous Buck Converter for MB/NB/UMPC/VGA z Networking DC-DC Power Sy

WSP4953A Datasheet (1.94 MB)

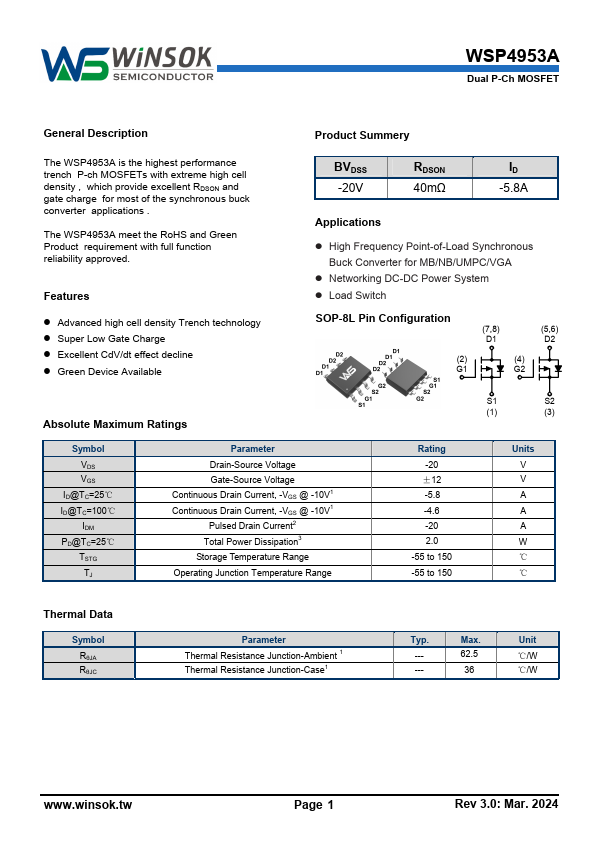

Preview of WSP4953A PDF

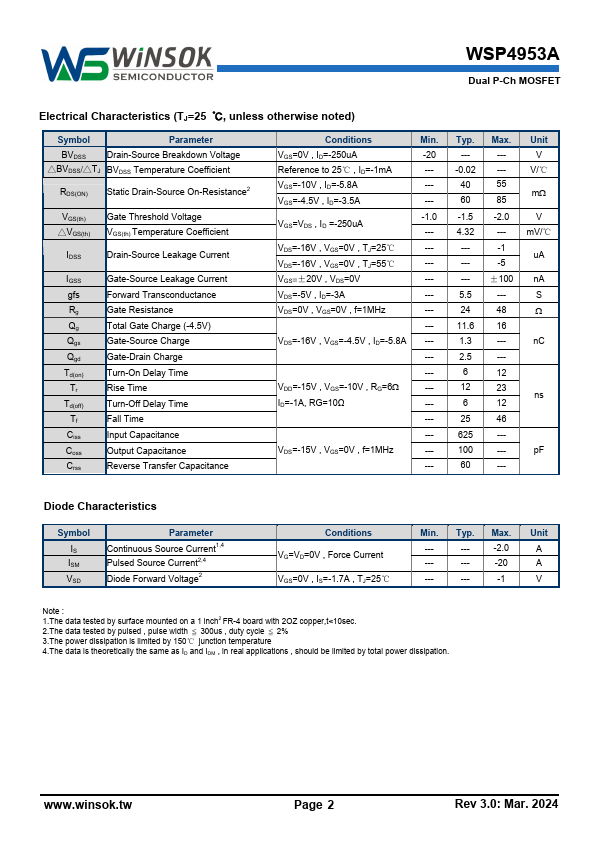

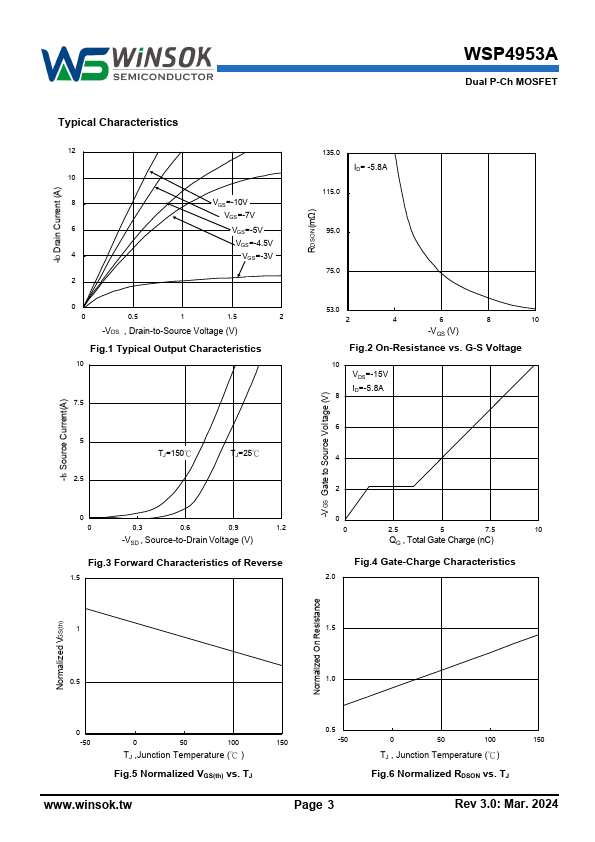

WSP4953A Datasheet Preview Page 2 WSP4953A Datasheet Preview Page 3

Datasheet Details

Part number:

WSP4953A

Manufacturer:

Winsok

File Size:

1.94 MB

Description:

Dual p-ch mosfet.
