TMAG5124-Q1, Automotive Hall-Effect Switch Sensor

The TMAG5124-Q1 device is a high-precision Hall effect sensor that offers a 2-wire interface designed for automotive designs. The TMAG5124-Q1 integrates a current source that switches between two levels depending on the value of the magnetic field applied to the part. While the high value is fixed.

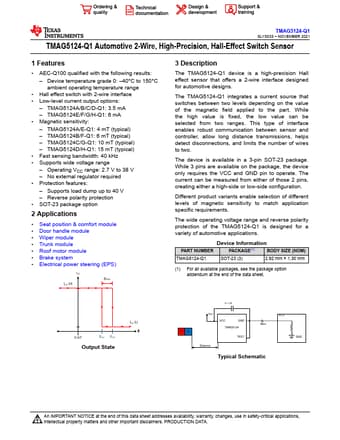

Datasheet Preview Page 1

TMAG5124-Q1-etcTI.pdf

TMAG5124-Q1 Datasheet Preview — Preview of TMAG5124-Q1 PDF

TMAG5124-Q1 Datasheet Preview Page 2

TMAG5124-Q1 Datasheet Preview Page 3

Datasheet Details

Part number:

TMAG5124-Q1

Manufacturer:

Texas Instruments ↗

File Size:

1.69 MB

Description:

Automotive Hall-Effect Switch Sensor

TMAG5124-Q1 Features

* AEC-Q100 qualified with the following results:

* Device temperature grade 0:

* 40°C to 150°C ambient operating temperature range

* Hall effect switch with 2-wire interface

* Low-level current output options:

* TMAG5124A/B/C/D-Q1: 3.5 mA

* TMA
