74LVC1G123 Datasheet - nexperia

74LVC1G123, Single retriggerable monostable multivibrator

The 74LVC1G123 is a single retriggerable monostable multivibrator with Schmitt trigger inputs. Output pulse width is controlled by three methods: 1. The basic pulse is programmed by selection of an external resistor (REXT) and capacitor (CEXT). 2. Once triggered, the basic output pulse width may be .

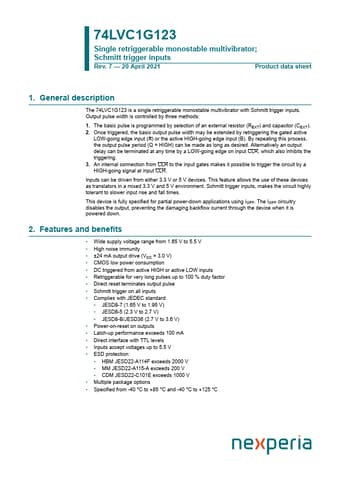

Datasheet Preview Page 1

74LVC1G123-nexperia.pdf

Preview of 74LVC1G123 PDF
74LVC1G123 Datasheet Preview Page 2 74LVC1G123 Datasheet Preview Page 3

Datasheet Details

Part number:

74LVC1G123

Manufacturer:

nexperia ↗

File Size:

326.35 KB

Description:

Single retriggerable monostable multivibrator

74LVC1G123 Features

* Wide supply voltage range from 1.65 V to 5.5 V

* High noise immunity

* ±24 mA output drive (VCC = 3.0 V)

* CMOS low power consumption

* DC triggered from active HIGH or active LOW inputs

* Retriggerable for very long pulses up to 100 % duty factor
