74LVC1G126 - Bus buffer/line driver

Product Overview

nexperia

📥 Download Datasheet

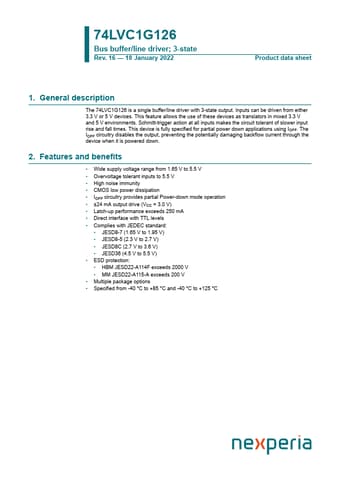

74LVC1G126 Bus buffer/line driver by nexperia - Datasheet Preview — Datasheet preview – 74LVC1G126

Datasheet Details

Part number	74LVC1G126
Manufacturer	nexperia
File Size	268.05 KB
Description	Bus buffer/line driver
Datasheet	74LVC1G126 Datasheet
Additional preview pages of the 74LVC1G126 datasheet.

Product details

Description

The 74LVC1G126 is a single buffer/line driver with 3-state output.

Features

Wide supply voltage range from 1.65 V to 5.5 V.
Overvoltage tolerant inputs to 5.5 V.
High noise immunity.
CMOS low power dissipation.
IOFF circuitry provides partial Power-down mode operation.
±24 mA output drive (VCC = 3.0 V).
Latch-up performance exceeds 250 mA.
Direct interface with TTL levels.
Complies with JEDEC standard:.
JESD8-7 (1.65 V to 1.95 V).
JESD8-5 (2.3 V to 2.7 V).
JESD8C.
