74LVC1G125 Datasheet, GATE, Diodes

74LVC1G125 Features

• Gate
• Wide Supply Voltage Range from 1.65 to 5.5V
• ± 24mA Output Drive at 3.3V
• CMOS Low Power Consumption
• IOFF Supports Partial-Power-Down Mode Operatio

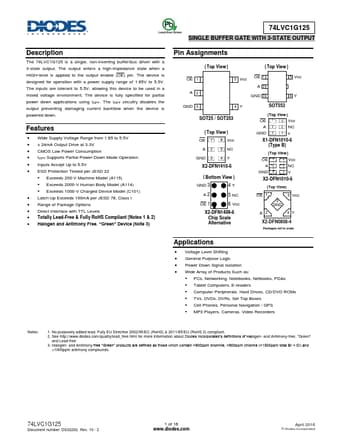

PDF File Details

Part number:

74LVC1G125

Manufacturer:

DIODES ↗

File Size:

513.72kb

Download:

📄 Datasheet

Description:

Single buffer gate. The 74LVC1G125 is a single, non-inverting buffer/bus driver with a 3-state output. The output enters a high-impedance state when a HI

74LVC1G125 Application

• Applications using IOFF. The IOFF circuitry disables the output preventing damaging current backflow when the device is powered down. Features
