NEX80611DA, NEX80601DA Datasheet - nexperia

NEX80611DA, NEX80601DA, Wide Vcc range quasi-resonant flyback controller

The NEX806 device series (NEX806xx) are high frequency quasi-resonant PWM controllers implemented with peak current mode control. As the load changes, the NEX806 device automatically switches mode between Quasi-Resonant (QR) mode, Discontinuous Conduction Mode (DCM) and Pulse Frequency Modulation (P.

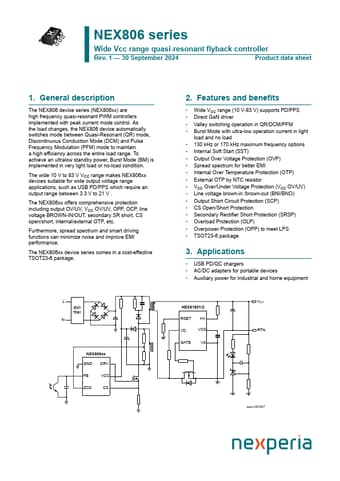

Datasheet Preview Page 1

NEX80601DA-nexperia.pdf

NEX80611DA Datasheet Preview — This datasheet PDF includes multiple part numbers: NEX80611DA, NEX80601DA. Please refer to the document for exact specifications by model.

NEX80611DA Datasheet Preview Page 2

NEX80611DA Datasheet Preview Page 3

Datasheet Details

Part number:

NEX80611DA, NEX80601DA

Manufacturer:

File Size:

367.85 KB

Description:

Wide Vcc range quasi-resonant flyback controller

Note:

This datasheet PDF includes multiple part numbers: NEX80611DA, NEX80601DA.
Please refer to the document for exact specifications by model.

NEX80611DA Features

* Wide VCC range (10 V-83 V) supports PD/PPS

* Direct GaN driver

* Valley switching operation in QR/DCM/PFM

* Burst Mode with ultra-low operation current in light load and no load

* 130 kHz or 170 kHz maximum frequency options

* Internal Soft Start (SS
