LM2903A - 36V Low Power Comparators

Datasheet Summary

Description

The devices in this series consist of dual/ quad independent single or dual supply voltage comparators on a single monolithic substrate.

Features

Wide Single-supply Voltage Range or Dual Supplies: +2.5 V to +36 V or ±1.25 V to ±18 V.
Very Low Supply Current (150 μA/ch).
Low Input Bias Current: 1 nA maximum.
Low Offset Voltage: ±6.0 mV maximum.
Input Common-mode Voltage Range Includes Ground.
Internal Differential Input Voltage Range Equal to The Supply Voltage.
Low Output Saturation.
40°C to 125°C Operation Range.
ESD Rating: HBM 4 kV, CDM 2 kV.

3PEAK

📥 Download Datasheet

Datasheet Details

Part number	LM2903A
Manufacturer	3PEAK
File Size	767.88 KB
Description	36V Low Power Comparators
Datasheet	LM2903A Datasheet

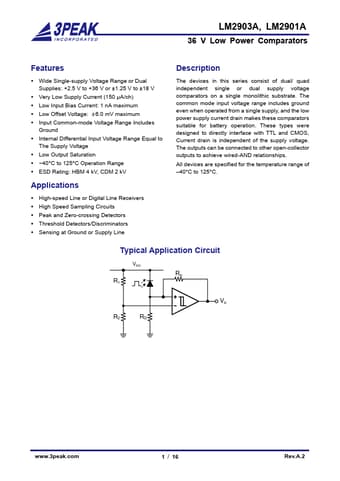

Additional preview pages of the LM2903A datasheet.

📁 Similar Datasheet

LM2903A - DUAL AND QUAD DIFFERENTIAL COMPARATORS (Diodes)
LM2903AQ - AUTOMOTIVE COMPLIANT DUAL AND QUAD DIFFERENTIAL COMPARATORS (Diodes)
LM2903AV - Dual Differential Comparators (Texas Instruments)
LM2903 - Dual Differential Comparator (Fairchild Semiconductor)
LM2903 - Low power dual voltage comparator (NXP)
LM2903 - Low Offset Voltage Dual Comparators (ON Semiconductor)
LM2903 - Low-power dual voltage comparator (STMicroelectronics)
LM2903 - Dual Differential Comparators (Texas Instruments)
LM2903 - SINGLE SUPPLY/ LOW POWER DUAL COMPARATORS (Motorola)
LM2903 - Low Power Low Offset Voltage Dual Comparators (National Semiconductor)

Other Datasheets by 3PEAK

LM2903D - 36V Dual Comparators
LM2901A - 36V Low Power Comparators
LM2902A - 36V General Purpose Op Amps
LM2904A - 36V General Purpose Op Amps

Full PDF Text Transcription

Click to expand full text

LM2903A, LM2901A 36 V Low Power Comparators Features  Wide Single-supply Voltage Range or Dual Supplies: +2.5 V to +36 V or ±1.25 V to ±18 V  Very Low Supply Current (150 μA/ch)  Low Input Bias Current: 1 nA maximum  Low Offset Voltage: ±6.
