LM2903D - Low-power dual voltage comparator

Product Overview

STMicroelectronics

Datasheet Details

Part number	LM2903D
Manufacturer	STMicroelectronics
File Size	1.96 MB
Description	Low-power dual voltage comparator
Datasheet	LM2903D Datasheet
Note	This datasheet PDF includes multiple part numbers: LM2903D, LM2903. Please refer to the document for exact specifications by model.

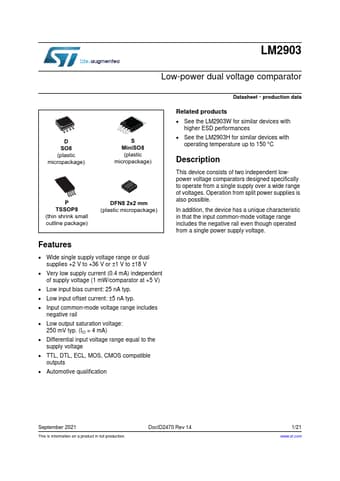

Additional preview pages of the LM2903D datasheet.

Product details

Description

This device consists of two independent lowpower voltage comparators designed specifically to operate from a single supply over a wide range of voltages.

Features

Wide single supply voltage range or dual supplies +2 V to +36 V or ±1 V to ±18 V.
Very low supply current (0.4 mA) independent of supply voltage (1 mW/comparator at +5 V).
Low input bias current: 25 nA typ.
Low input offset current: ±5 nA typ.
Input common-mode voltage range includes negative rail.
Low output saturation voltage: 250 mV typ. (IO = 4 mA).
Differential input voltage range equal to the supply voltage.
TTL, DT.
