LM2903AQ - AUTOMOTIVE COMPLIANT DUAL AND QUAD DIFFERENTIAL COMPARATORS

Product Overview

Diodes

Datasheet Details

Part number	LM2903AQ
Manufacturer	DIODES
File Size	948.07 KB
Description	AUTOMOTIVE COMPLIANT DUAL AND QUAD DIFFERENTIAL COMPARATORS
Datasheet	LM2903AQ Datasheet
Note	This datasheet PDF includes multiple part numbers: LM2903AQ, LM2901Q. Please refer to the document for exact specifications by model.

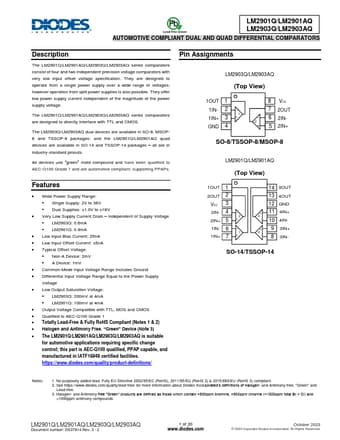

Additional preview pages of the LM2903AQ datasheet.

Product details

Description

The LM2901Q/LM2901AQ/LM2903Q/LM2903AQ series comparators consist of four and two independent precision voltage comparators with very low input offset voltage specification.

Features

Wide Power Supply Range:.
Single Supply: 2V to 36V.
Dual Supplies: ±1.0V to ±18V.
Very Low Supply Current Drain.
Independent of Supply Voltage.
LM2903Q: 0.6mA.
LM2901Q: 0.9mA.
Low Input Bias Current: 25nA.
Low Input Offset Current: ±5nA.
Typical Offset Voltage:.
Non-A Device: 2mV.
A Device: 1mV.
Common-Mode Input Voltage Range Includes Ground.
Differential Input Voltage Range Equal to the Power Supply Voltage.
Low Ou.
