LM339A, LM331A Datasheet - 3PEAK

LM339A 36V Low Power Comparators

The devices in this series consist of single/ dual/ quad independent single or dual supply voltage comparators on a single monolithic substrate. The common mode input voltage range includes ground even when operated from a single supply, and the low power supply current drain makes these comparators.

LM339A Features

* Wide Single-supply Voltage Range or Dual Supplies: +2.5 V to +36 V or ±1.25 V to ±18 V

* Very Low Supply Current (150 μA/ch)

* Low Input Bias Current: 1 nA maximum

* Low Offset Voltage: ±6.0 mV maximum

* Input Common-mode Voltage Range Includes Ground

* Internal Differentia

LM331A-3PEAK.pdf

This datasheet PDF includes multiple part numbers: LM339A, LM331A. Please refer to the document for exact specifications by model.

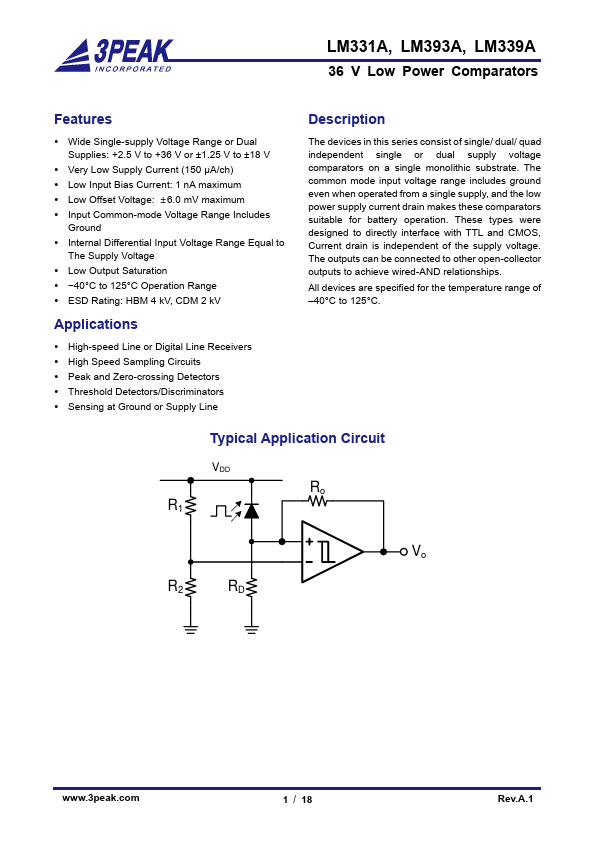

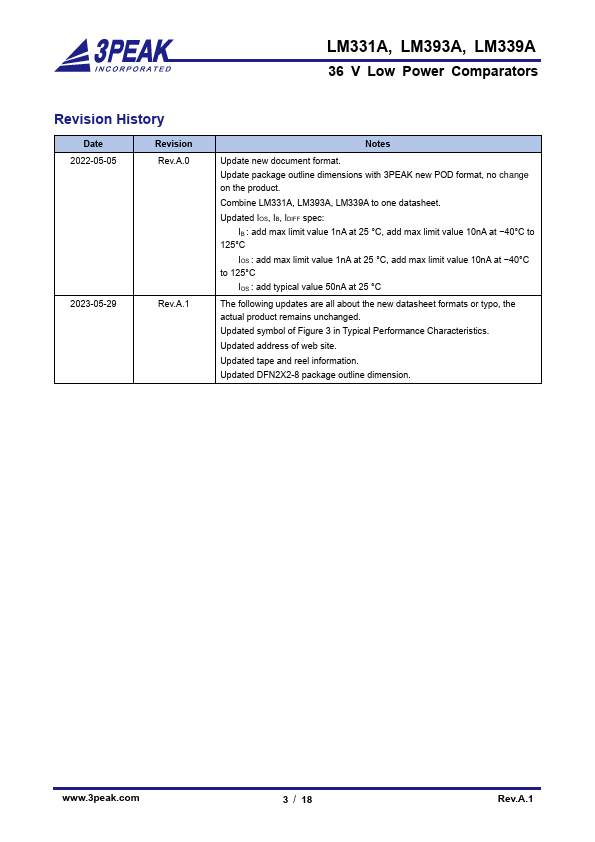

LM339A Datasheet Preview Page 2 LM339A Datasheet Preview Page 3

Datasheet Details

Part number:

LM339A, LM331A

Manufacturer:

3PEAK

File Size:

791.30 KB

Description:

36v low power comparators.

Note:

This datasheet PDF includes multiple part numbers: LM339A, LM331A.
Please refer to the document for exact specifications by model.
