LM331A - 36V Low Power Comparators

LM331A Description

LM331A, LM393A, LM339A 36 V Low Power Comparators .
The devices in this series consist of single/ dual/ quad independent single or dual supply voltage comparators on a single monolithic substrate.

LM331A Features

* Wide Single-supply Voltage Range or Dual Supplies: +2.5 V to +36 V or ±1.25 V to ±18 V
* Very Low Supply Current (150 μA/ch)
* Low Input Bias Current: 1 nA maximum
* Low Offset Voltage: ±6.0 mV maximum
* Input Common-mode Voltage Range Includes Ground
* Internal Differentia

LM331A Applications

* High-speed Line or Digital Line Receivers
* High Speed Sampling Circuits
* Peak and Zero-crossing Detectors
* Threshold Detectors/Discriminators

📥 Download Datasheet

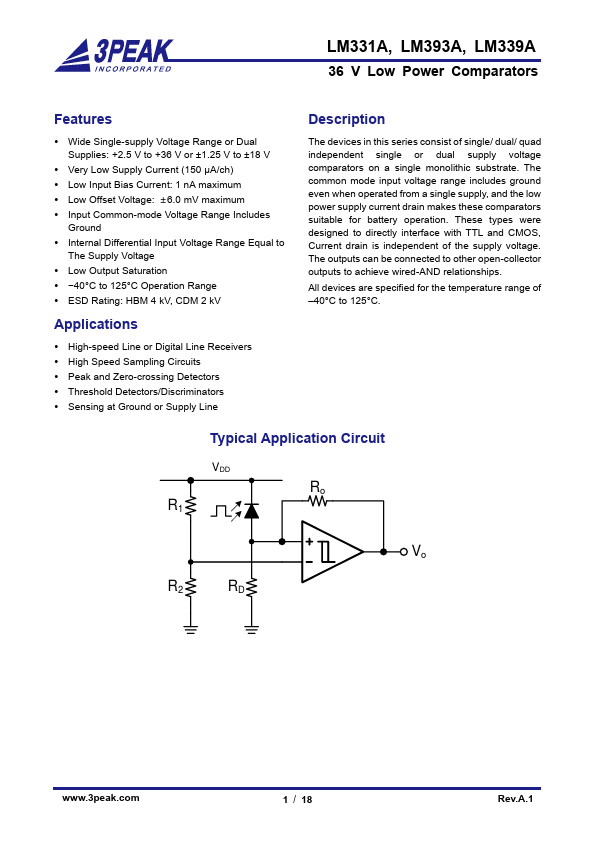

Preview of LM331A PDF

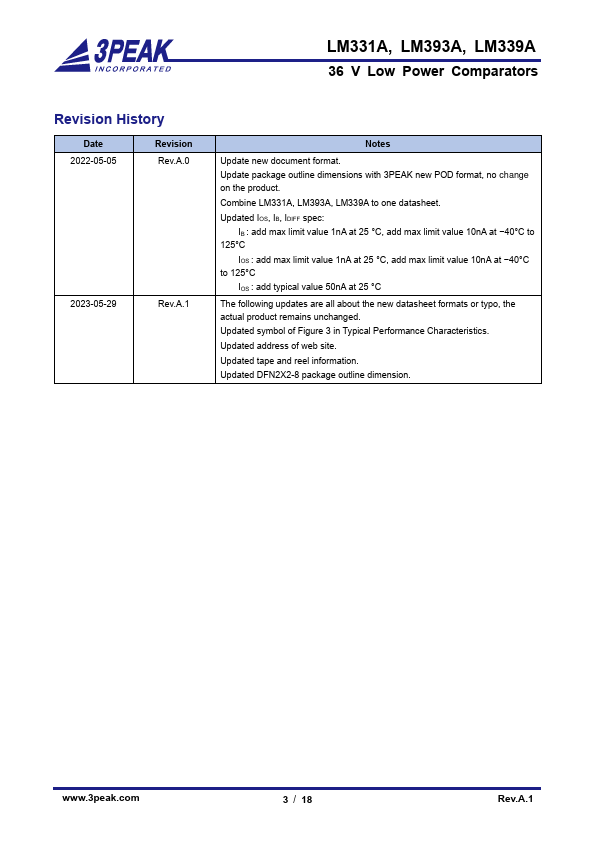

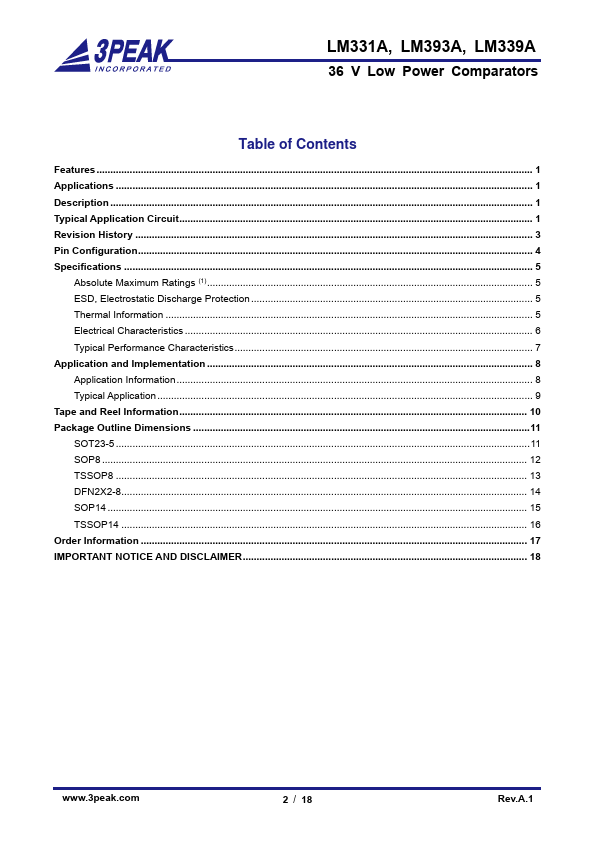

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LM331A
Manufacturer
3PEAK
File Size
791.30 KB
Datasheet
LM331A-3PEAK.pdf
Description
36V Low Power Comparators
