LM393A, LM331A, 36V Low Power Comparators

LM331A, LM393A, LM339A 36 V Low Power Comparators .
The devices in this series consist of single/ dual/ quad independent single or dual supply voltage comparators on a single monolithic substrate.

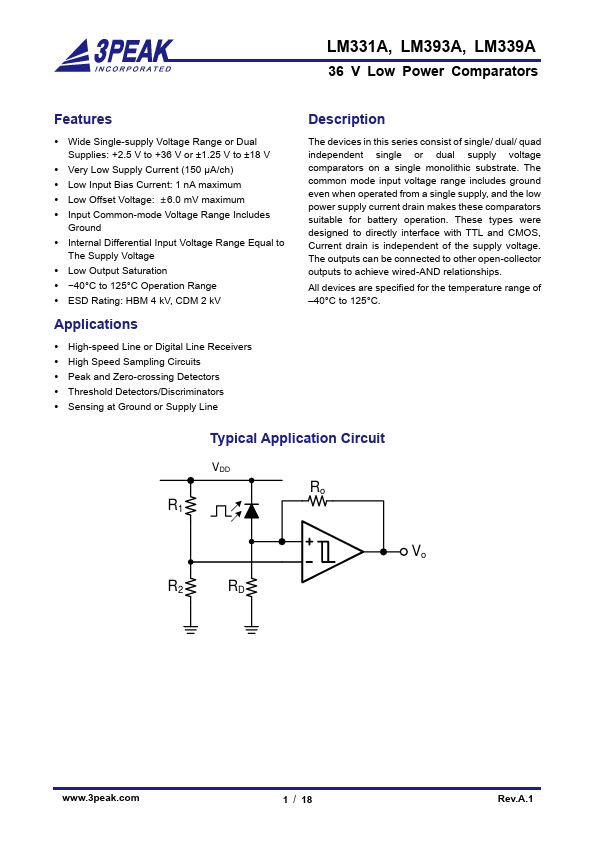

datasheet Preview Page 1 from Datasheet4u.com

LM331A-3PEAK.pdf

LM393A Datasheet Preview — This datasheet PDF includes multiple part numbers: LM393A, LM331A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LM393A, LM331A

Manufacturer:

3PEAK

File Size:

791.30 KB

Description:

36V Low Power Comparators

Note:

This datasheet PDF includes multiple part numbers: LM393A, LM331A.
Please refer to the document for exact specifications by model.

Features

* Wide Single-supply Voltage Range or Dual Supplies: +2.5 V to +36 V or ±1.25 V to ±18 V
* Very Low Supply Current (150 μA/ch)
* Low Input Bias Current: 1 nA maximum
* Low Offset Voltage: ±6.0 mV maximum
* Input Common-mode Voltage Range Includes Ground
* Internal Differentia

Applications

* High-speed Line or Digital Line Receivers
* High Speed Sampling Circuits
* Peak and Zero-crossing Detectors
* Threshold Detectors/Discriminators
