TP1962, TP1961 Datasheet - 3PEAK

TP1962 Beyond-the-Rails Comparators

* Ultra-Fast, 7ns Propagation Delay * Ideal for +3V and +5V Single-Supply Applications * Offset Voltage: ± 10.0 mV Maximum * Rail to Rail Input and Output * 7.5mV Internal Hysteresis for Clean Switching * Push-Pull, CMOS/TTL Compatible Output * Input Common-Mode Range Ex.

TP1961-3PEAK.pdf

This datasheet PDF includes multiple part numbers: TP1962, TP1961. Please refer to the document for exact specifications by model.

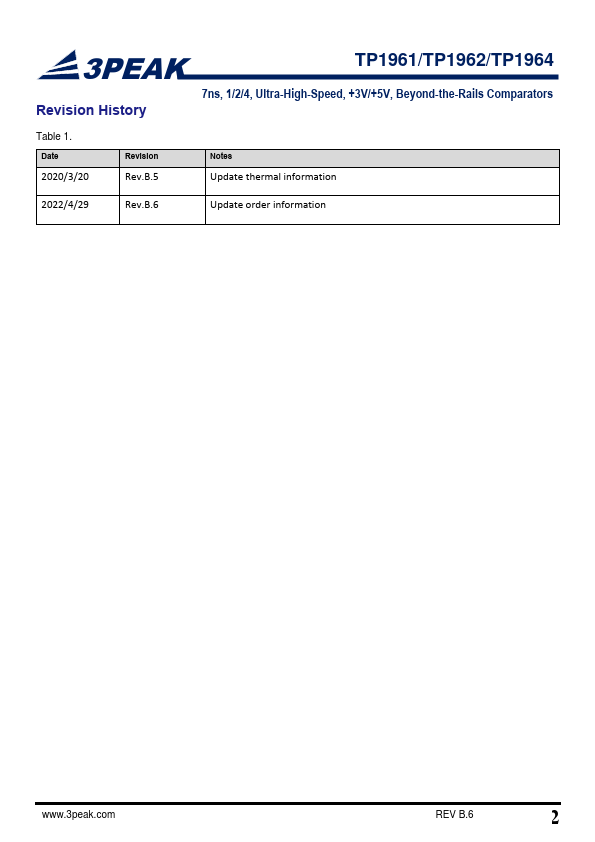

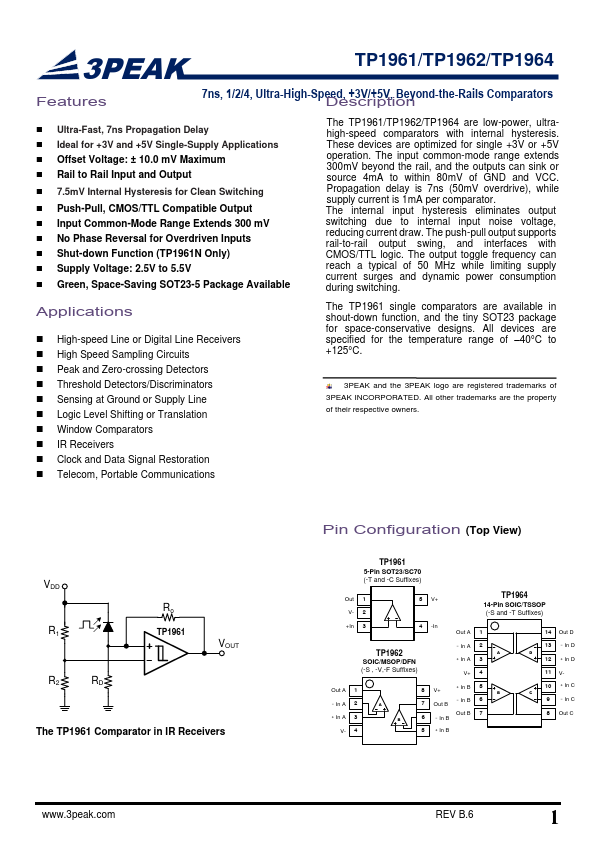

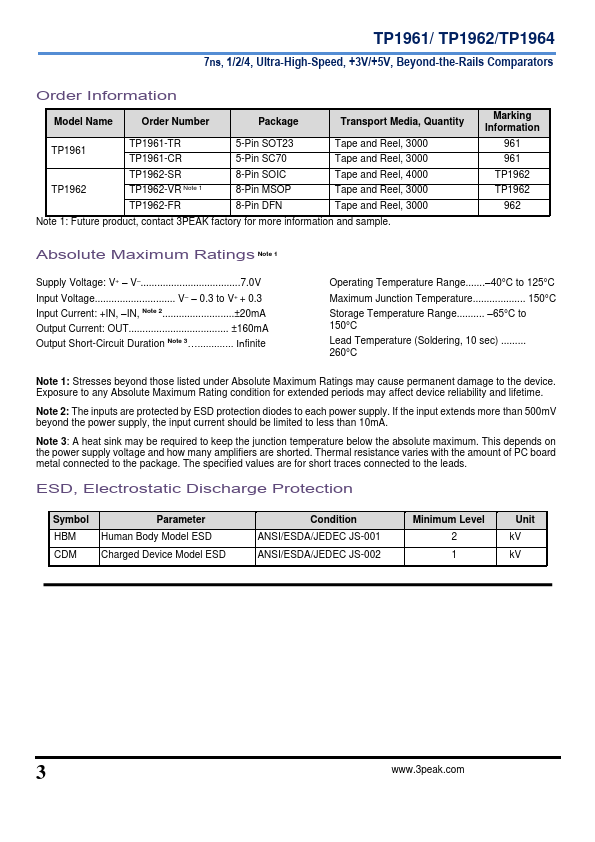

TP1962 Datasheet Preview Page 2 TP1962 Datasheet Preview Page 3

Datasheet Details

Part number:

TP1962, TP1961

Manufacturer:

3PEAK

File Size:

809.08 KB

Description:

Beyond-the-rails comparators.

Note:

This datasheet PDF includes multiple part numbers: TP1962, TP1961.
Please refer to the document for exact specifications by model.
