TP1942 Datasheet, Comparators, 3Peak

TP1942 Features

  • Comparators
  • Fast Response Time: 68 ns Propagation Delay
  • Ultra-Low Supply Current: 46 μA per Channel
  • Offset Voltage: ± 3.0 mV Maximum
  • Offset Voltage Temperatu

PDF File Details

Part number:

TP1942

Manufacturer:

3Peak

File Size:

1.49MB

Download:

📄 Datasheet

Description:

Push-pull output comparators.

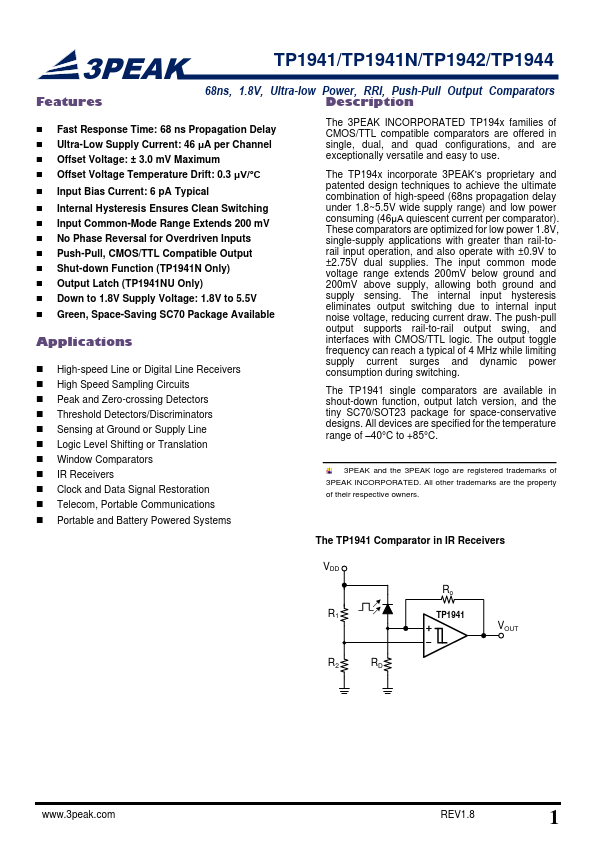

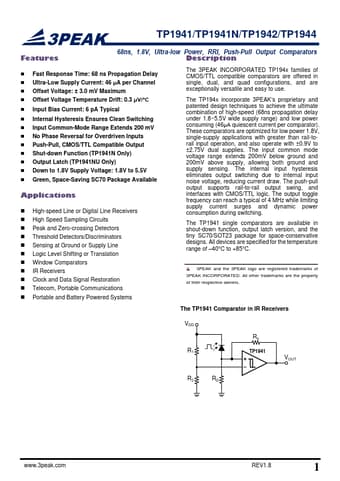

Datasheet Preview: TP1942 📥 Download PDF (1.49MB)

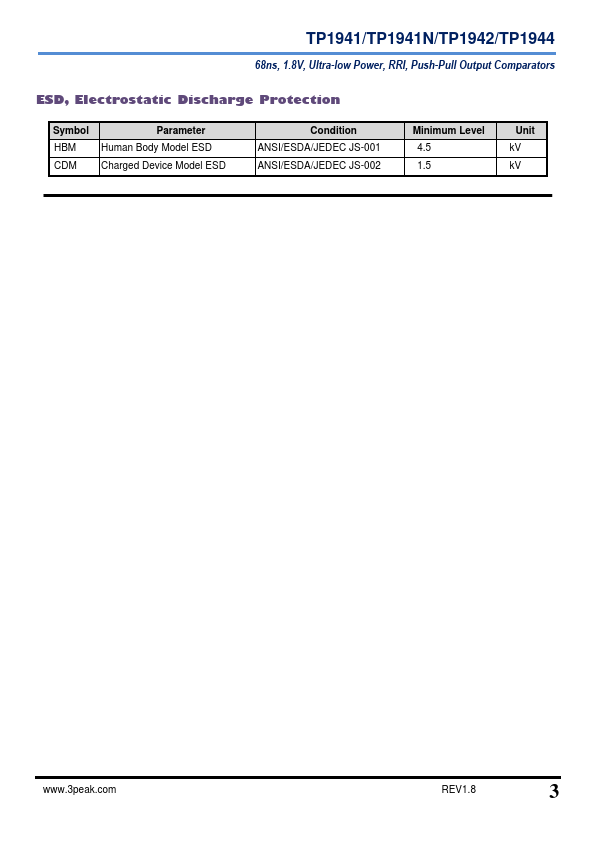

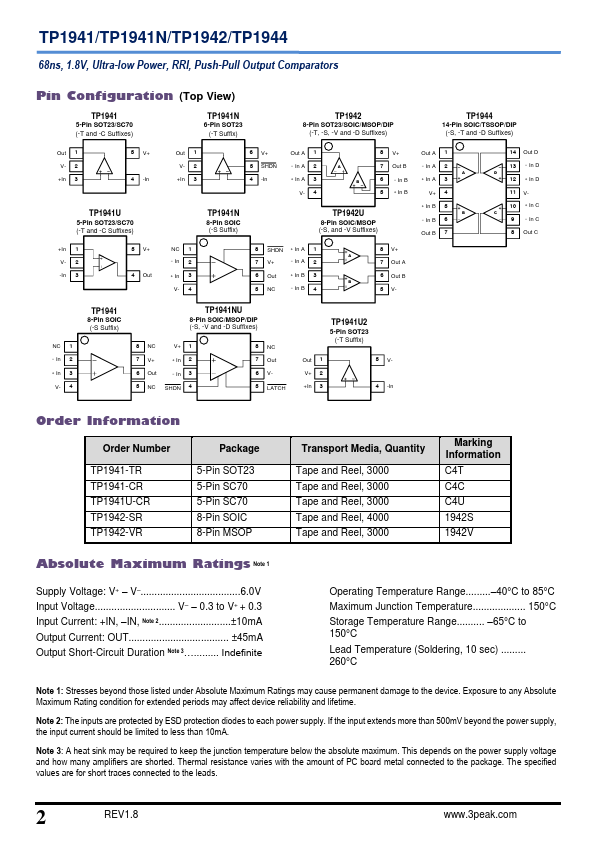

Page 2 of TP1942 Page 3 of TP1942

TP1942 Application

  • Applications
  • High-speed Line or Digital Line Receivers
  • High Speed Sampling Circuits
  • Peak and Zero-crossing Detectors <
