TP1944, TP1941, Push-Pull Output Comparators

3PEAK .
Fast Response Time: 68 ns Propagation Delay. Ultra-Low Supply Current: 46 μA per Channel. Offset Voltage: ± 3. Offs.

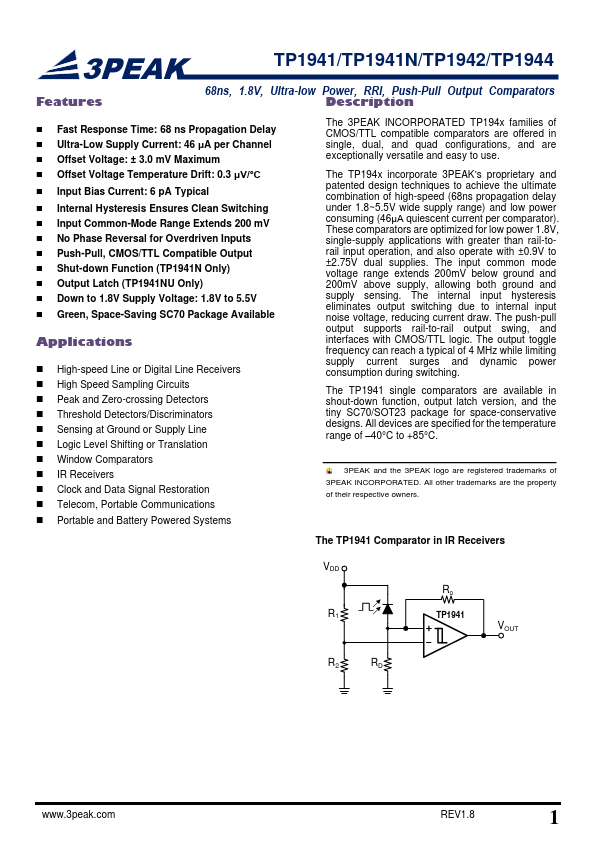

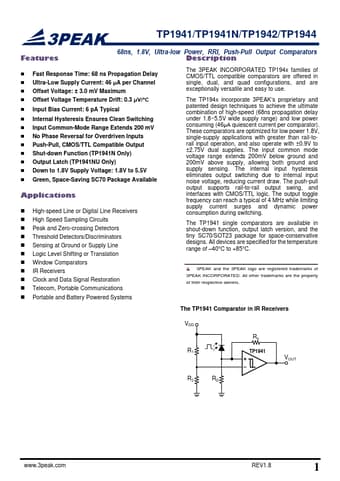

datasheet Preview Page 1 from Datasheet4u.com

TP1941-3PEAK.pdf

TP1944 Datasheet Preview — This datasheet PDF includes multiple part numbers: TP1944, TP1941. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TP1944, TP1941

Manufacturer:

3Peak

File Size:

929.90 KB

Description:

Push-Pull Output Comparators

Note:

This datasheet PDF includes multiple part numbers: TP1944, TP1941.
Please refer to the document for exact specifications by model.

Applications

* High-speed Line or Digital Line Receivers
* High Speed Sampling Circuits
* Peak and Zero-crossing Detectors
* Threshold Detectors/Discriminators
* Sensing at Ground or Supply Line
* Logic Level Shifting or Translation
* Window Comparators
* IR Receivers
* Clock
