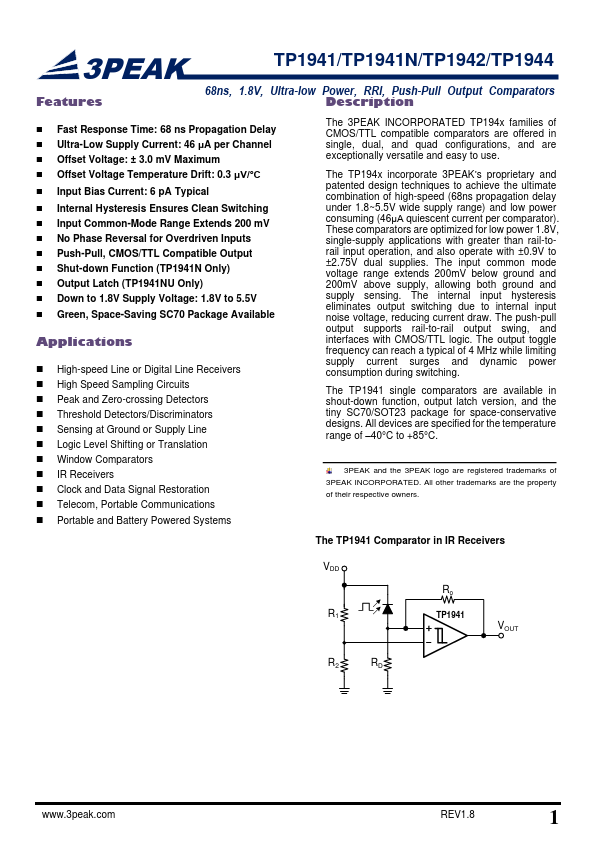

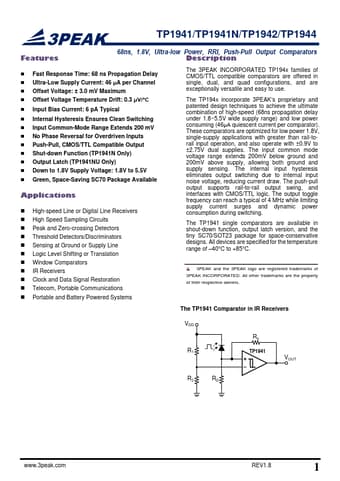

TP1941N Datasheet, Comparators, 3Peak

TP1941N Features

• Comparators
• Fast Response Time: 68 ns Propagation Delay
• Ultra-Low Supply Current: 46 μA per Channel
• Offset Voltage: ± 3.0 mV Maximum
• Offset Voltage Temperatu

PDF File Details

Part number:

TP1941N

Manufacturer:

3Peak

File Size:

1.49MB

Download:

📄 Datasheet

Description:

Push-pull output comparators.

TP1941N Application

• Applications
• High-speed Line or Digital Line Receivers
• High Speed Sampling Circuits
• Peak and Zero-crossing Detectors <
