TP2011 Push-Pull Output Comparators

3PEAK

Description

3PEAK TP2011/TP2012/TP2014 Ultra-Low Power 200nA, 1.6V, RRIO, Push-Pull Output Comparators .
The TP201x family of push-pull output comparators features the world-class lowest nano-power (250nA maximum) and fast 13μs response time capability,.

📥 Download Datasheet

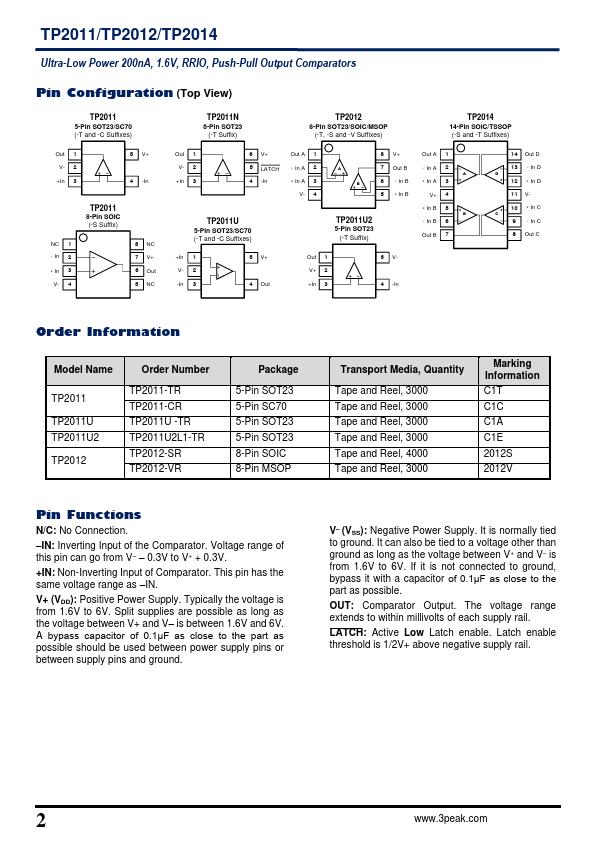

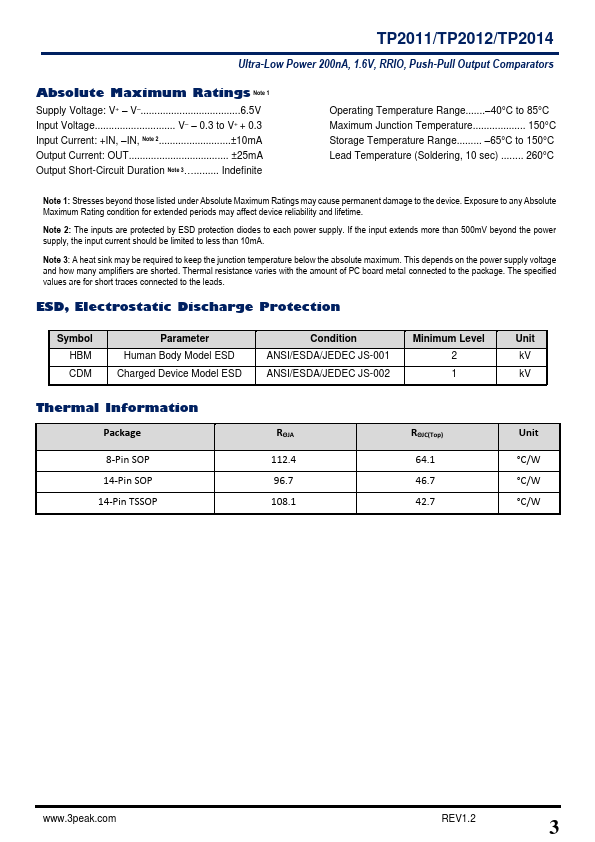

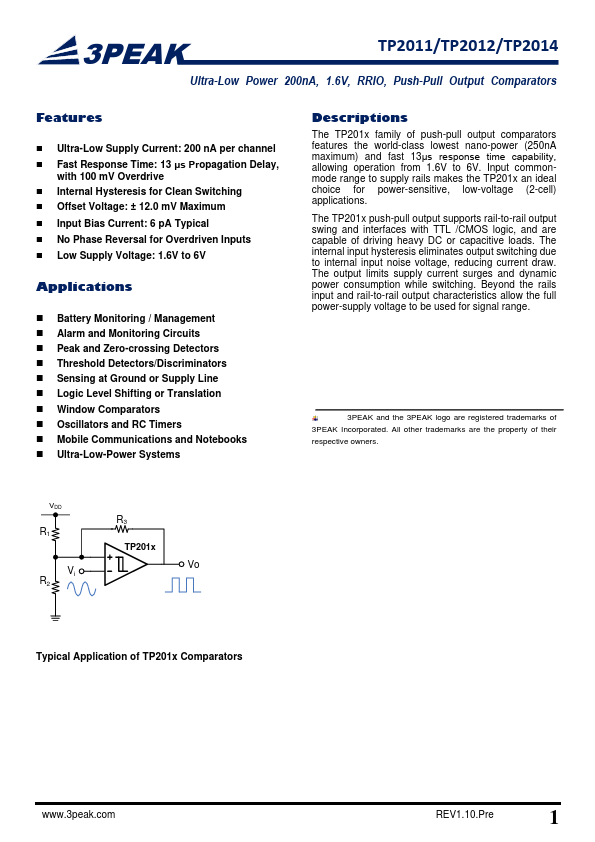

TP2011 Datasheet Preview — Preview of TP2011 PDF

Datasheet Specifications

Part number: TP2011
Manufacturer: 3PEAK
File Size: 829.04 KB
Datasheet: TP2011-3PEAK.pdf
Description: Push-Pull Output Comparators

Features

* Ultra-Low Supply Current: 200 nA per channel
* Fast Response Time: 13 μs Propagation Delay, with 100 mV Overdrive
* Internal Hysteresis for Clean Switching
* Offset Voltage: ± 12.0 mV Maximum
* Input Bias Current: 6 pA Typical
* No Phase Reversal for Overdriven Inputs

Applications

* Battery Monitoring / Management
* Alarm and Monitoring Circuits
* Peak and Zero-crossing Detectors
* Threshold Detectors/Discriminators
* Sensing at Ground or Supply Line
* Logic Level Shifting or Translation
* Window Comparators
* Oscillators and RC Timers
* Mo
