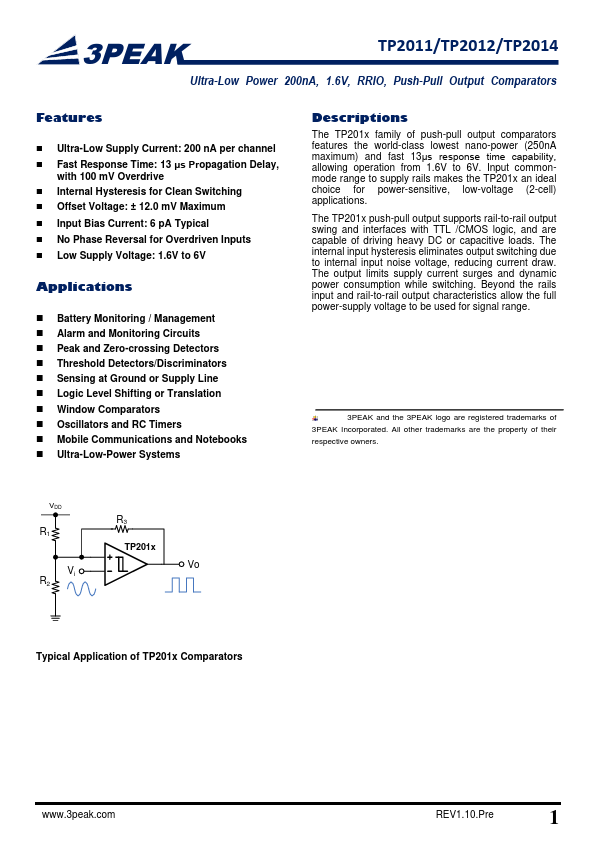

TP2014 Features
* Ultra-Low Supply Current: 200 nA per channel
* Fast Response Time: 13 μs Propagation Delay, with 100 mV Overdrive
* Internal Hysteresis for Clean Switching
* Offset Voltage: ± 12.0 mV Maximum
* Input Bias Current: 6 pA Typical
* No Phase Reversal for Overdriven Inputs
Datasheet Details
TP2014, TP2011
3PEAK
829.04 KB
Push-pull output comparators.
This datasheet PDF includes multiple part numbers: TP2014, TP2011.
Please refer to the document for exact specifications by model.
