TP2302, TP2301, Low Noise High Precision Op-amps

3PEAK TP2301/TP2302 /TP2304 20MHz Bandwidth, Low Noise High Precision Op-amps .
The TP2301 series products are very high precision amplifiers featuring very low noise, low offset voltage, high bandwidth, low input bias current and.

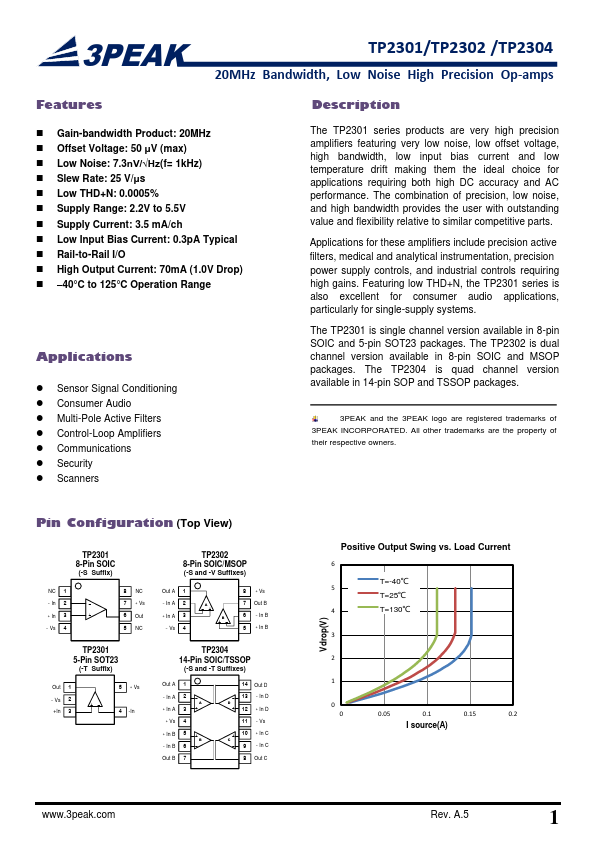

datasheet Preview Page 1 from Datasheet4u.com

TP2301-3PEAK.pdf

TP2302 Datasheet Preview — This datasheet PDF includes multiple part numbers: TP2302, TP2301. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TP2302, TP2301

Manufacturer:

3PEAK

File Size:

874.92 KB

Description:

Low Noise High Precision Op-amps

Note:

This datasheet PDF includes multiple part numbers: TP2302, TP2301.
Please refer to the document for exact specifications by model.

Features

* Gain-bandwidth Product: 20MHz
* Offset Voltage: 50 μV (max)
* Low Noise: 7.3nV/√Hz(f= 1kHz)
* Slew Rate: 25 V/μs
* Low THD+N: 0.0005%
* Supply Range: 2.2V to 5.5V
* Supply Current: 3.5 mA/ch
* Low Input Bias Current: 0.3pA Typical
* Rail-to-Rail I/O
* High O

Applications

* Sensor Signal Conditioning
* Consumer Audio
* Multi-Pole Active Filters
* Control-Loop Amplifiers
* Communications
* Security
