TP2301 - Low Noise High Precision Op-amps

TP2301 Description

3PEAK TP2301/TP2302 /TP2304 20MHz Bandwidth, Low Noise High Precision Op-amps .
The TP2301 series products are very high precision amplifiers featuring very low noise, low offset voltage, high bandwidth, low input bias current and.

TP2301 Features

* Gain-bandwidth Product: 20MHz
* Offset Voltage: 50 μV (max)
* Low Noise: 7.3nV/√Hz(f= 1kHz)
* Slew Rate: 25 V/μs
* Low THD+N: 0.0005%
* Supply Range: 2.2V to 5.5V
* Supply Current: 3.5 mA/ch
* Low Input Bias Current: 0.3pA Typical
* Rail-to-Rail I/O
* High O

TP2301 Applications

* Sensor Signal Conditioning
* Consumer Audio
* Multi-Pole Active Filters
* Control-Loop Amplifiers
* Communications
* Security

📥 Download Datasheet

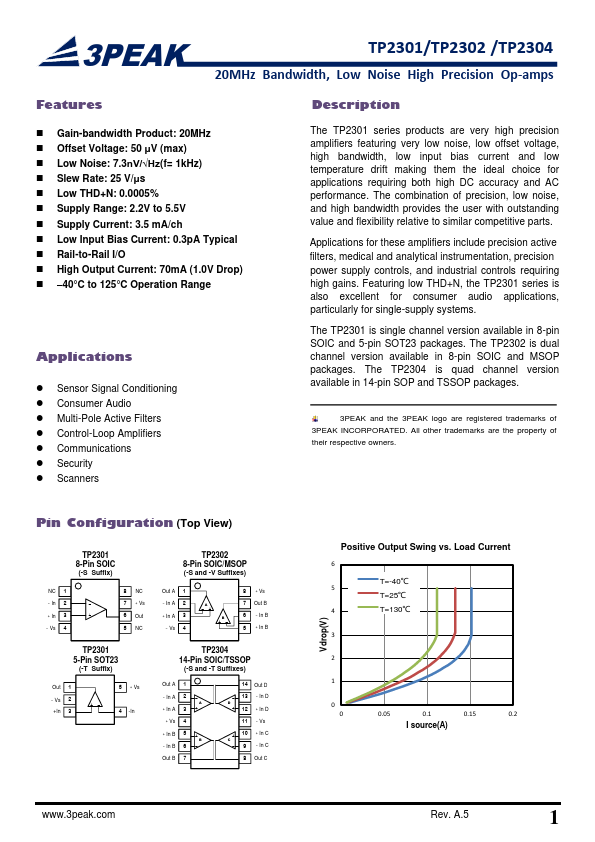

Preview of TP2301 PDF

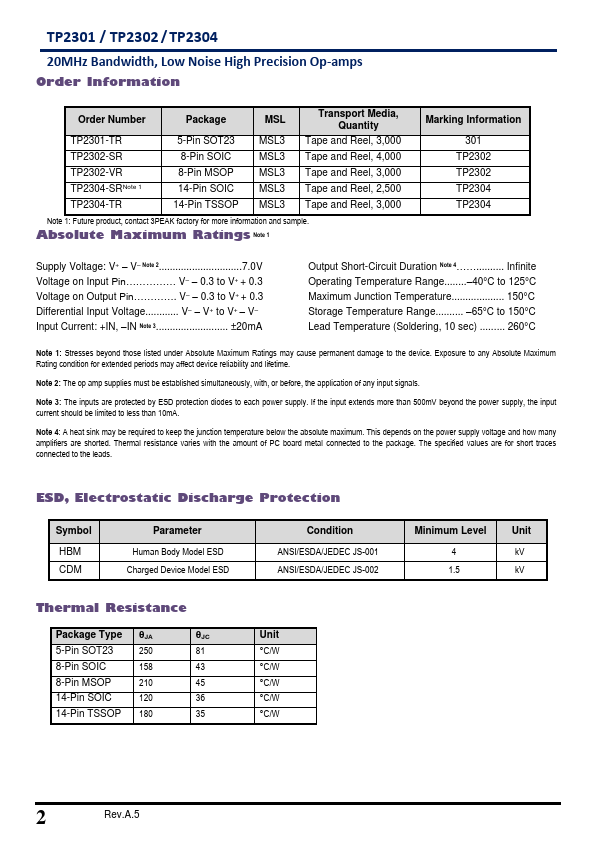

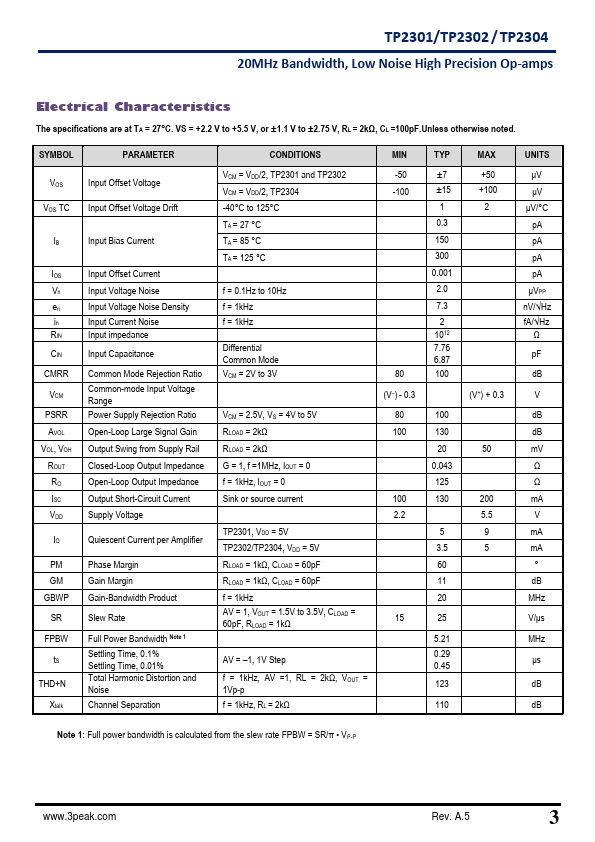

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TP2301
Manufacturer
3PEAK
File Size
874.92 KB
Datasheet
TP2301-3PEAK.pdf
Description
Low Noise High Precision Op-amps
