TPA2642 - 36V 1.5MHz Low Noise Op Amps

Product Overview

3PEAK

Datasheet Details

Part number	TPA2642
Manufacturer	3PEAK
File Size	1.84 MB
Description	36V 1.5MHz Low Noise Op Amps
Datasheet	TPA2642 Datasheet
Note	This datasheet PDF includes multiple part numbers: TPA2642, TPA2641. Please refer to the document for exact specifications by model.

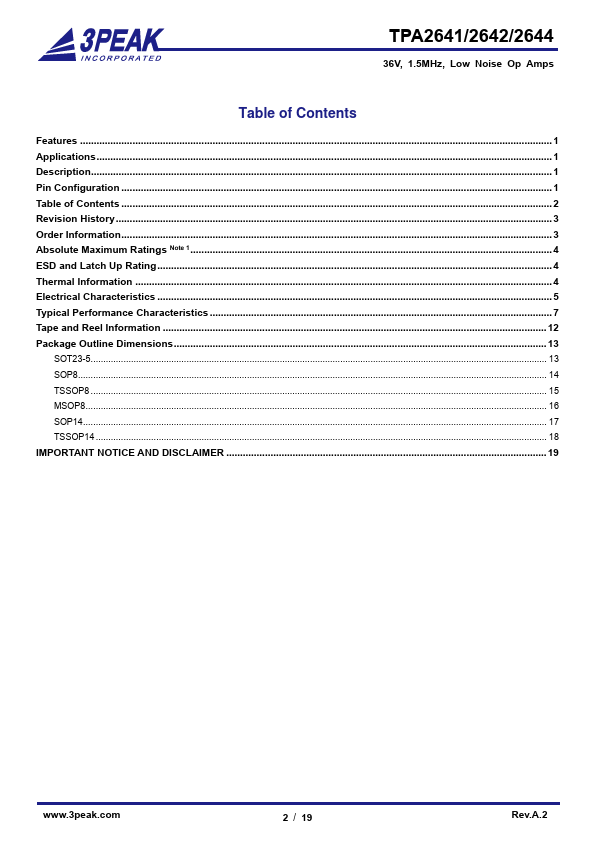

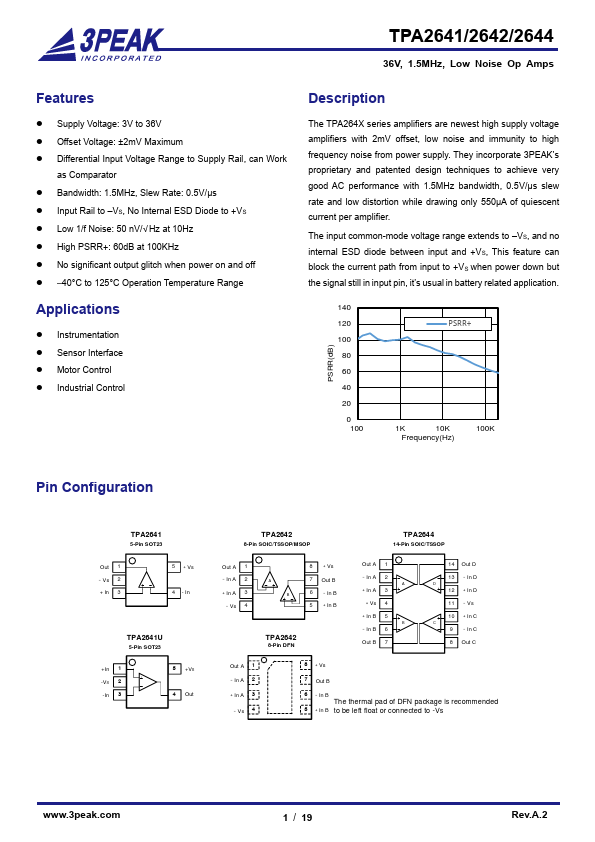

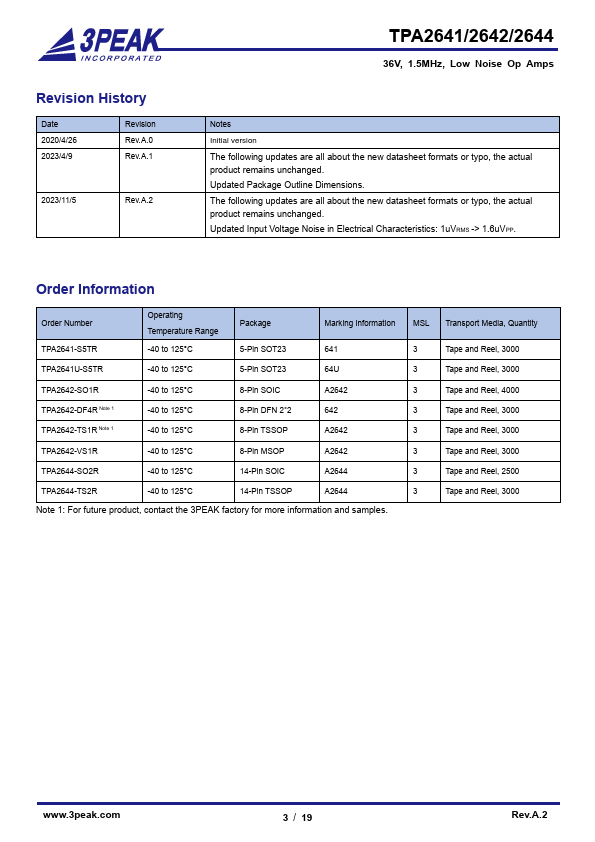

Additional preview pages of the TPA2642 datasheet.

Product details

Description

The TPA264X series amplifiers are newest high supply voltage amplifiers with 2mV offset, low noise and immunity to high frequency noise from power supply. VS, and no internal ESD diode between input and +VS, This featu

Features

Supply Voltage: 3V to 36V.
Offset Voltage: ±2mV Maximum.
Differential Input Voltage Range to Supply Rail, can Work as Comparator.
Bandwidth: 1.5MHz, Slew Rate: 0.5V/μs.
Input Rail to.
VS, No Internal ESD Diode to +VS.
Low 1/f Noise: 50 nV/√Hz at 10Hz.
High PSRR+: 60dB at 100KHz.
No significant output glitch when power on and off.
40°C to 125°C Operation Temperature Range.
