TPA2681 - 36V Low Noise Op Amps

Datasheet Summary

Description

The TPA268X series amplifiers are the newest highsupply voltage amplifiers with low noise and highfrequency response.

Features

  • Supply Voltage: 8 V to 36 V.
  • Offset Voltage: ±3 mV.
  • Differential Input Voltage Range to Supply Rail, can Work as Comparator.
  • Bandwidth: 20 MHz, Slew Rate: 10 V/μs.
  • Low Noise:.
  • Voltage Noise Density: 10 nV/√Hz at 100 Hz.
  • 0.1 to 10 Hz Voltage Noise: 0.8 μVPP.
  • Input Rail to.
  • VS, No Internal ESD Diode to +VS.
  • High PSRR+: 80 dB at 100 kHz.
  • 40°C to 125°C Operation Temperature Range.

📥 Download Datasheet

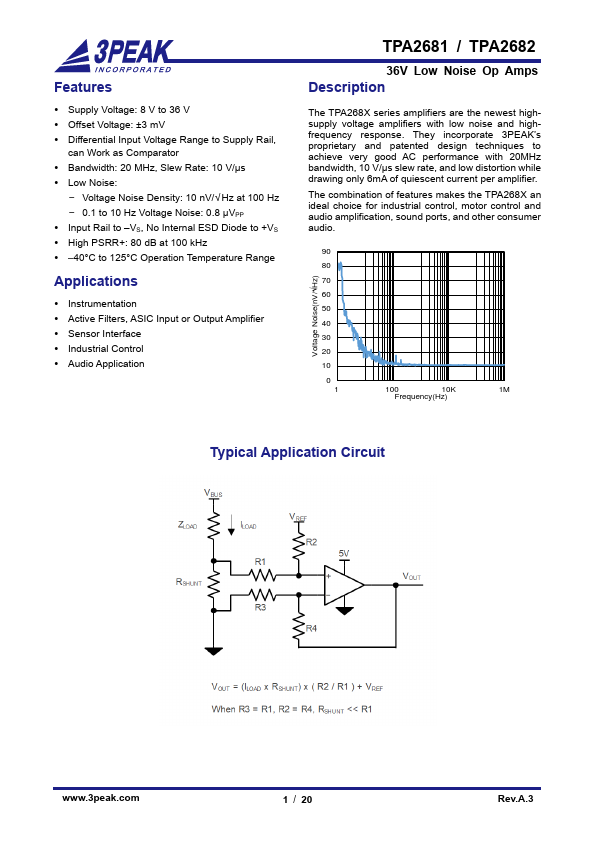

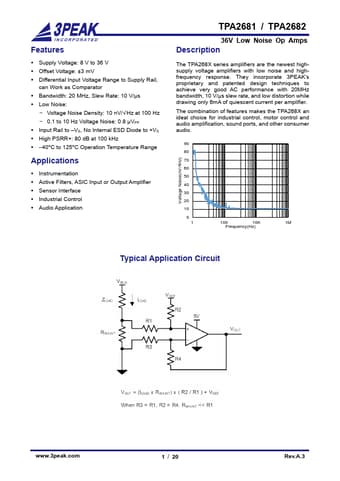

Datasheet preview – TPA2681

Datasheet Details

Part number TPA2681
Manufacturer 3PEAK
File Size 1.26 MB
Description 36V Low Noise Op Amps
Datasheet download datasheet TPA2681 Datasheet

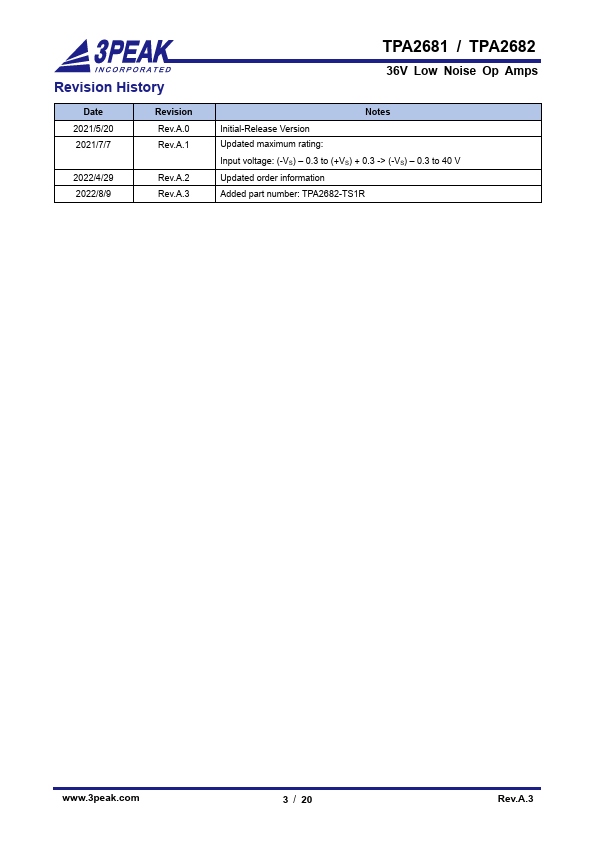

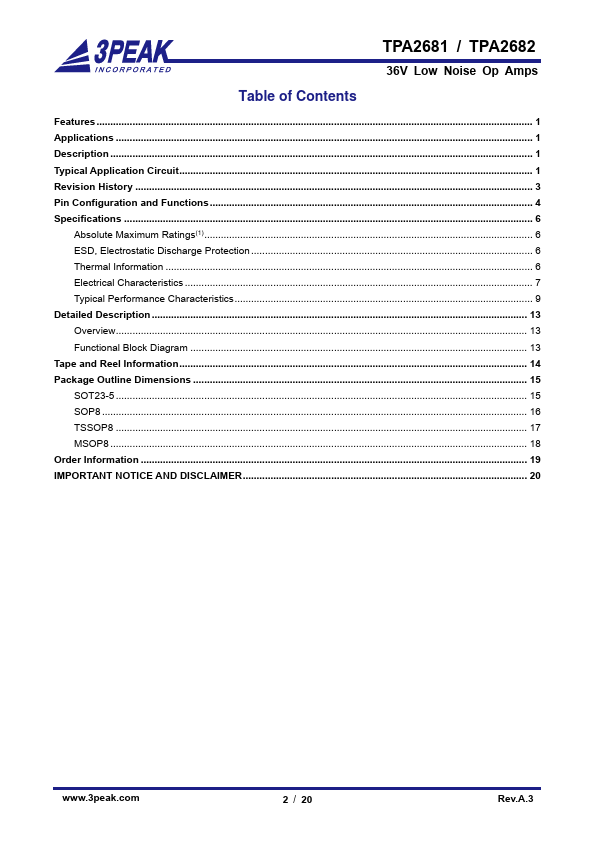

Additional preview pages of the TPA2681 datasheet.

📁 Similar Datasheet

  • TPA200 - Trisil (STMicroelectronics)
  • TPA200 - SOLID STATE TELECOMMUNICATION PROTECTION ARRESTOR (TIAN YI)
  • TPA2000D1 - 2-W FILTERLESS MONO CLASS-D AUDIO POWER AMPLIFIER (Texas Instruments)
  • TPA2000D1-Q1 - 2-W FILTERLESS MONO CLASS-D AUDIO POWER AMPLIFIER (Texas Instruments)
  • TPA2000D2 - 2-W FILTERLESS STEREO CLASS-D AUDIO POWER AMPLIFIER (Texas Instruments)
  • TPA2000D4 - Stereo 2-W Class-D Audio Power Amplifier (Texas Instruments)
  • TPA2001D1 - 1-W FILTERLESS MONO CLASS-D AUDIO POWER AMPLIFIER (Texas Instruments)
  • TPA2001D2 - 1-W FILTERLESS STEREO CLASS-D AUDIO POWER AMPLIFIER (Texas Instruments)
  • TPA2005D1 - 1.4-W MONO Filter-Free Class-D Audio Power Amplifier (Texas Instruments)
  • TPA2005D1-Q1 - 1.4-W MONO Filter-Free Class-D Audio Power Amplifier (Texas Instruments)
Other Datasheets by 3PEAK
  • TPA2682 - 36V Low Noise Op Amps
  • TPA2641 - 36V 1.5MHz Low Noise Op Amps
  • TPA2642 - 36V 1.5MHz Low Noise Op Amps
  • TPA2644 - 36V 1.5MHz Low Noise Op Amps
  • TPA2031Q - 55-ns Comparators
  • TPA2295C - High side Current Sense Amplifier
  • TPA2296 - High-Side Current Sense Amplifier
  • TPA1285 - 2ch Current Sense Amplifier

Full PDF Text Transcription

Click to expand full text
Features  Supply Voltage: 8 V to 36 V  Offset Voltage: ±3 mV  Differential Input Voltage Range to Supply Rail, can Work as Comparator  Bandwidth: 20 MHz, Slew Rate: 10 V/μs  Low Noise: − Voltage Noise Density: 10 nV/√Hz at 100 Hz − 0.1 to 10 Hz Voltage Noise: 0.8 μVPP  Input Rail to –VS, No Internal ESD Diode to +VS  High PSRR+: 80 dB at 100 kHz  –40°C to 125°C Operation Temperature Range Applications  Instrumentation  Active Filters, ASIC Input or Output Amplifier  Sensor Interface  Industrial Control  Audio Application TPA2681 / TPA2682 36V Low Noise Op Amps Description The TPA268X series amplifiers are the newest highsupply voltage amplifiers with low noise and highfrequency response.
