TPA6581 10-MHz Op Amp

TPA6581 Description

TPA6581/TPA6582/TPA6584 5-V, Rail-to-Rail Input/Output, 10-MHz Op Amp .
The TPA658x series of products are CMOS single, dual, and quad RRIO op-amps with low offset, low power, and stable high frequency response.

TPA6581 Features

* Supply Voltage: 2.7 V to 5.5 V
* Offset Voltage: ±2 mV Maximum
* Bandwidth: 10 MHz, Slew Rate: 8 V/μs
* Low Power: 1.2 mA per channel
* Rail-to-Rail Input and Output
* Low 1/f Noise: 10 nV/√Hz at 1 kHz
* No Significant Output Glitch when Power on and off

TPA6581 Applications

* Instrumentation
* Audio
* Motor Control

📥 Download Datasheet

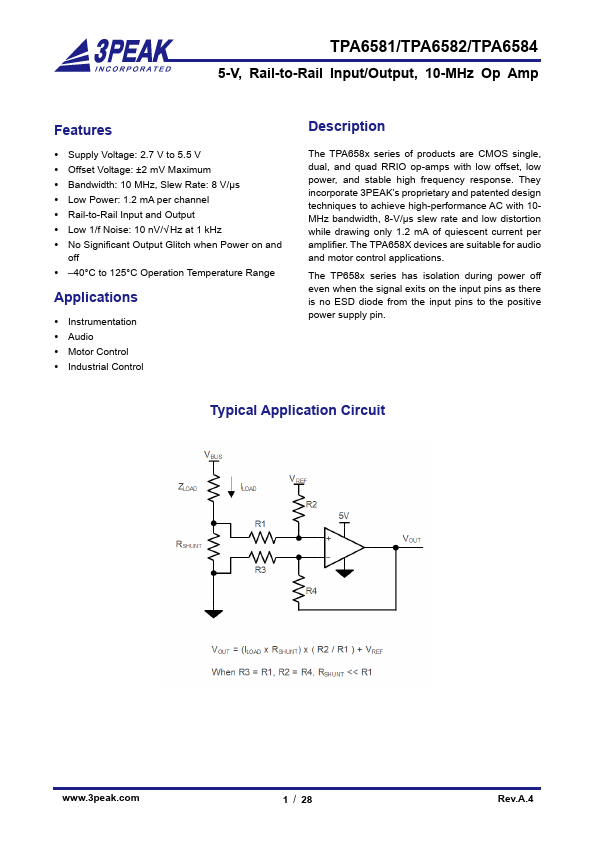

Preview of TPA6581 PDF

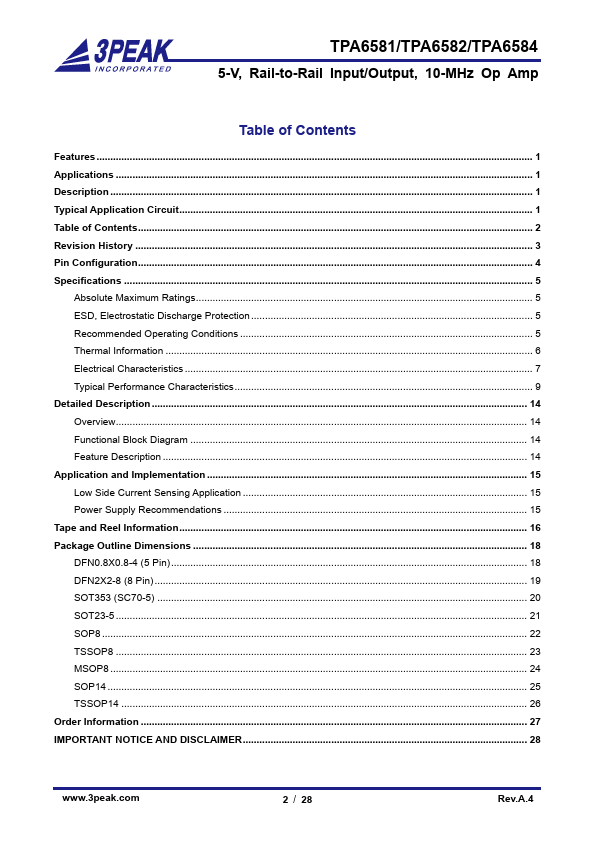

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPA6581
Manufacturer
3PEAK
File Size
1.63 MB
Datasheet
TPA6581-3PEAK.pdf
Description
10-MHz Op Amp
