TPA6582

10-MHz Op Amp

TPA6582 Features

* Supply Voltage: 2.7 V to 5.5 V

* Offset Voltage: ±2 mV Maximum

* Bandwidth: 10 MHz, Slew Rate: 8 V/μs

* Low Power: 1.2 mA per channel

* Rail to rail input and output

* Low 1/f Noise: 10 nV/√Hz at 1 kHz

* No significant output glitch when power on and off

TPA6582 General Description

The TPA658X series is CMOS single, dual, and quad RRIO op-amps with low offset, low power and stable high frequency response. They incorporate 3PEAK’s proprietary and patented design techniques to achieve high-performance AC with 10 MHz bandwidth, 8 V/μs slew rate and low distortion while drawing on.

TPA6582 Datasheet (1.68 MB)

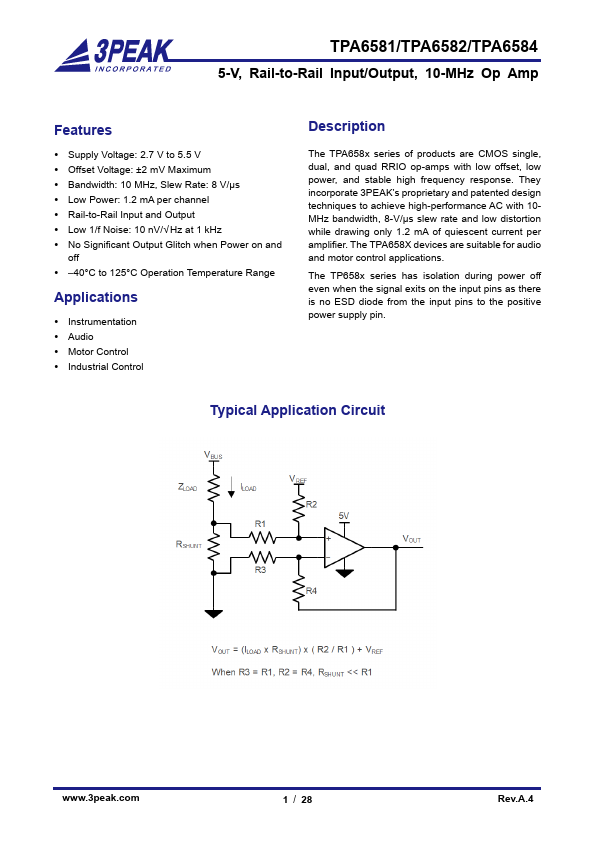

Preview of TPA6582 PDF

Datasheet Details

Part number:

TPA6582

Manufacturer:

3PEAK

File Size:

1.68 MB

Description:

10-mhz op amp.

📁 Related Datasheet

TPA6581 - 10-MHz Op Amp (3PEAK)
TPA6581/TPA6582/TPA6584 5-V, Rail-to-Rail Input/Output, 10 MHz Op Amp Features  Supply Voltage: 2.7 V to 5.5 V  Offset Voltage: ±2 mV Maximum  Ban.

TPA6584 - 10-MHz Op Amp (3PEAK)
TPA6581/TPA6582/TPA6584 5-V, Rail-to-Rail Input/Output, 10 MHz Op Amp Features  Supply Voltage: 2.7 V to 5.5 V  Offset Voltage: ±2 mV Maximum  Ban.

TPA6531 - Low-Power Op Amps (3PEAK)
TPA6531/TPA6532/TPA6534 5-V, 300-kHz GBWP, Low-Power Op Amps Features Description • Supply Voltage: 1.75 V to 5.5 V • Offset Voltage: ±1.5 mV Maxim.

TPA6532 - Low-Power Op Amps (3PEAK)
TPA6531/TPA6532/TPA6534 5-V, 300-kHz GBWP, Low-Power Op Amps Features Description • Supply Voltage: 1.75 V to 5.5 V • Offset Voltage: ±1.5 mV Maxim.

TPA6533 - Low-Power Op Amps (3PEAK)
TPA6531/TPA6532/TPA6534 5-V, 300-kHz GBWP, Low-Power Op Amps Features Description • Supply Voltage: 1.75 V to 5.5 V • Offset Voltage: ±1.5 mV Maxim.

TPA6551 - Low-Noise Op Amps (3PEAK)
TPA6551/TPA6552/TPA6554 5-V, 10-MHz GBWP, Low-Noise Op Amps Features Description • Supply Voltage: 2.5 V to 5.5 V or ±1.25 V to ±2.75 V • Offset Vo.

TPA6552 - Low-Noise Op Amps (3PEAK)
TPA6551/TPA6552/TPA6554 5-V, 10-MHz GBWP, Low-Noise Op Amps Features Description • Supply Voltage: 2.5 V to 5.5 V or ±1.25 V to ±2.75 V • Offset Vo.

TPA6554 - Low-Noise Op Amps (3PEAK)
TPA6551/TPA6552/TPA6554 5-V, 10-MHz GBWP, Low-Noise Op Amps Features Description • Supply Voltage: 2.5 V to 5.5 V or ±1.25 V to ±2.75 V • Offset Vo.

TAGS

TPA6582 10-MHz Amp 3PEAK

Image Gallery

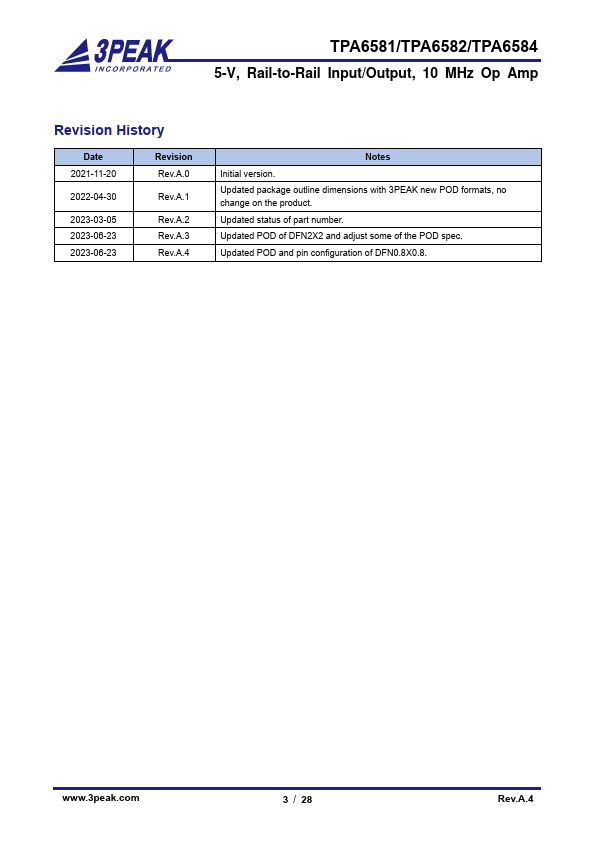

TPA6582 Datasheet Preview Page 2 TPA6582 Datasheet Preview Page 3
