TPA65R090M Datasheet - Unigroup

650V Super-junction Power MOSFET

TPA65R090M Features

* l Very low FOM RDS(on)×Qg l 100% avalanche tested l Easy to use/drive l RoHS compliant Applications l Switch Mode Power Supply (SMPS) l Uninterruptible Power Supply (UPS) l Power Factor Correction (PFC) l Charger TO-220F TO-263 TO-3PN TO-247 Device Marking and Package Information Device Pack

TPA65R090M General Description

650V Super-junction Power MOSFET Super-junction power MOSFET is a revolutionary technology for high voltage power MOSFETs，designed according to the SJ principle. The Multi-EPI SJ MOSFET provide an extremely low switching, communication and conduction losses device with highest robustness make especi.

TPA65R090M Datasheet (1.01 MB)

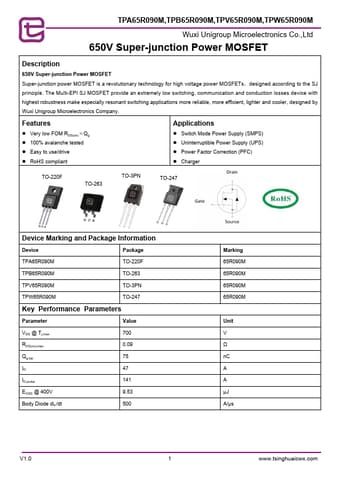

TPA65R090M Datasheet Preview — Preview of TPA65R090M PDF

Datasheet Details

Part number:

TPA65R090M

Manufacturer:

Unigroup

File Size:

1.01 MB

Description:

650v super-junction power mosfet.
