TPA65R180D Datasheet - Unigroup

650V Super-junction Power MOSFET

TPA65R180D Features

* l Very low FOM RDS(on)×Qg l 100% avalanche tested l Easy to use/drive l RoHS compliant Applications l Switch Mode Power Supply (SMPS) l Uninterruptible Power Supply (UPS) l Power Factor Correction (PFC) l Charger TO-220F Device Marking and Package Information Device Package TPA65R180D TO-220F

TPA65R180D General Description

650V Super-junction Power MOSFET Super-junction power MOSFET is a revolutionary technology for high voltage power MOSFETs，designed according to the SJ principle. The deep trench SJ MOSFET provide an extremely low switching, communication and conduction losses device with highest robustness make espe.

TPA65R180D Datasheet (720.46 KB)

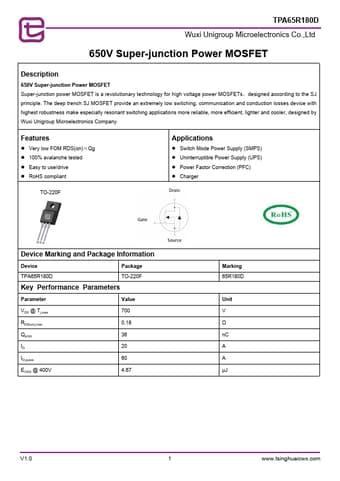

Preview of TPA65R180D PDF

Datasheet Details

Part number:

TPA65R180D

Manufacturer:

Unigroup

File Size:

720.46 KB

Description:

650v super-junction power mosfet.
