TPA8001, TPA8000 - Isolated Amplifier

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TPA8001, TPA8000. Please refer to the document for exact specifications by model.

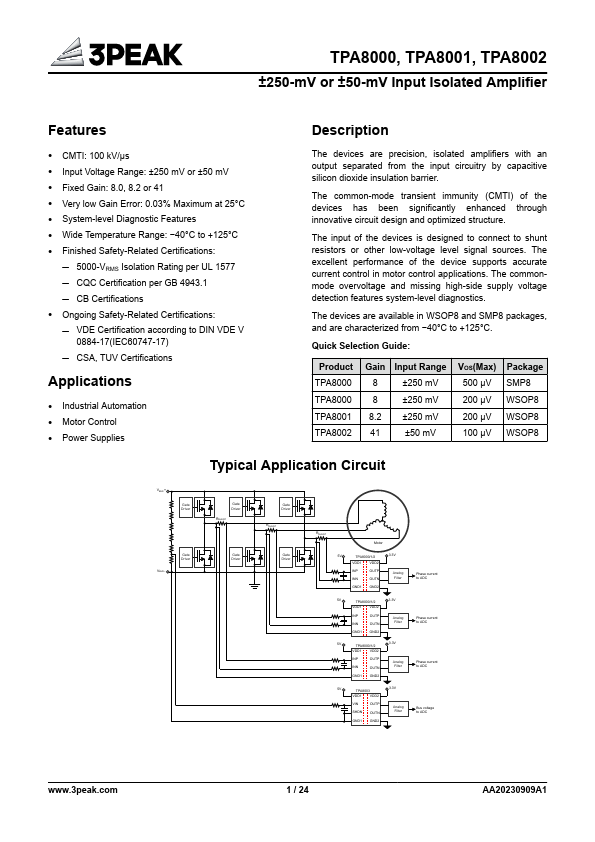

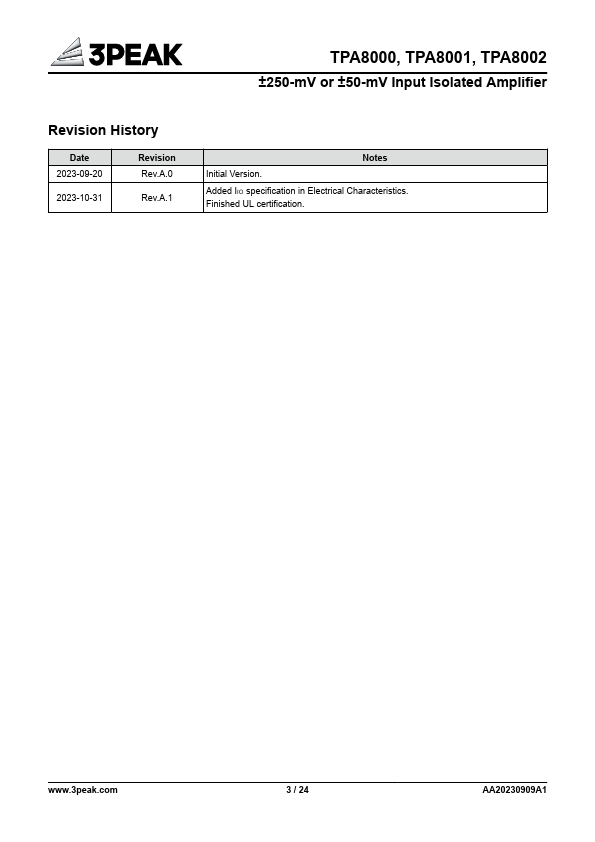

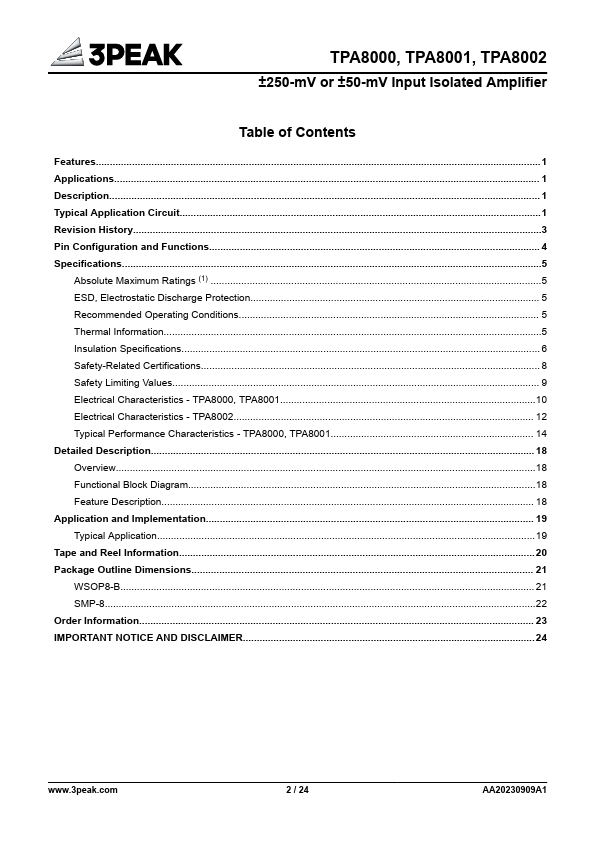

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number TPA8001, TPA8000
Manufacturer 3PEAK
File Size 1.24 MB
Description Isolated Amplifier
Datasheet download datasheet TPA8000-3PEAK.pdf
Note This datasheet PDF includes multiple part numbers: TPA8001, TPA8000.
Please refer to the document for exact specifications by model.

TPA8001 Product details

Description

CMTI: 100 kV/μs Input Voltage Range: ±250 mV or ±50 mV Fixed Gain: 8.0, 8.2 or 41 Very low Gain Error: 0.03% Maximum at 25°C System-level Diagnostic
