TPA8003 - 2.2-V Input Isolated Amplifier

3PEAK

📥 Download Datasheet

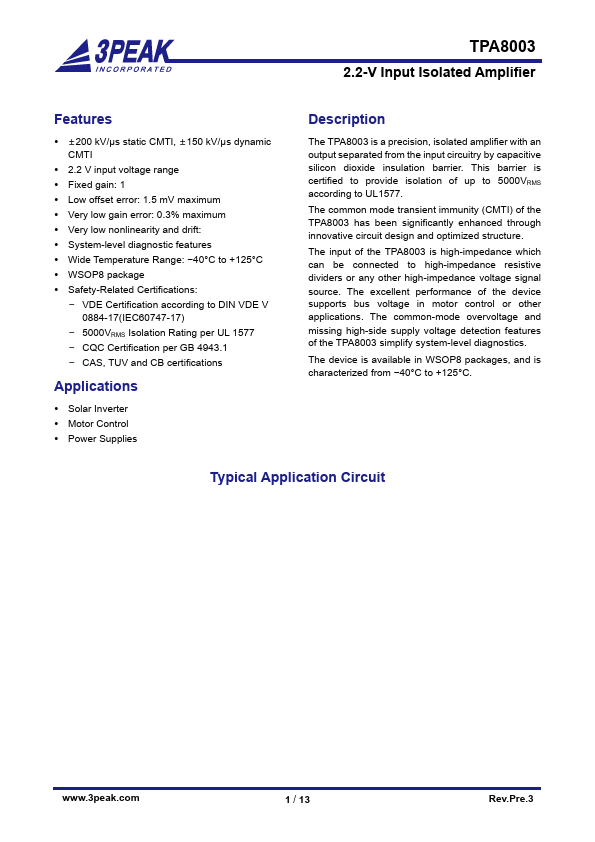

TPA8003 Datasheet Preview — Preview of TPA8003 PDF

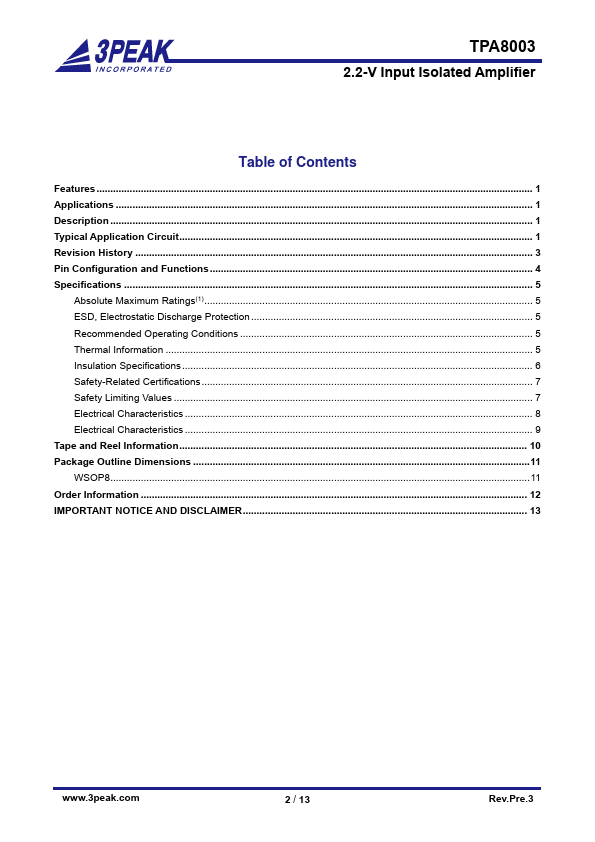

datasheet Preview Page 2

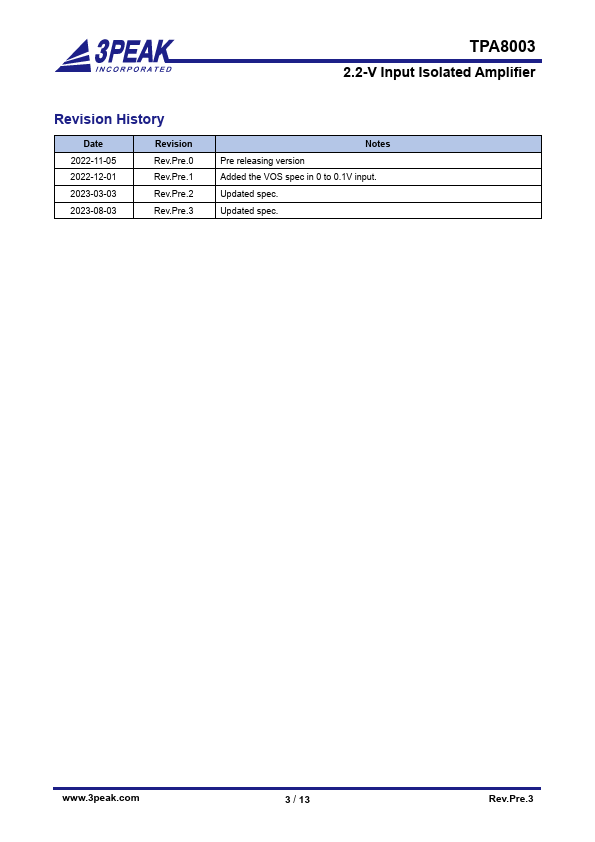

datasheet Preview Page 3

Datasheet Details

Part number	TPA8003
Manufacturer	3PEAK
File Size	470.51 KB
Description	2.2-V Input Isolated Amplifier
Datasheet	TPA8003-3PEAK.pdf

TPA8003 Product details

Description

The TPA8003 is a precision, isolated amplifier with an output separated from the input circuitry by capacitive silicon dioxide insulation barrier.

Features

±200 kV/μs static CMTI, ±150 kV/μs dynamic CMTI.
2.2 V input voltage range.
Fixed gain: 1.
Low offset error: 1.5 mV maximum.
Very low gain error: 0.3% maximum.
Very low nonlinearity and drift:.
System-level diagnostic features.
Wide Temperature Range:.
40°C to +125°C.
WSOP8 package.
Safety-Related Certifications:.
VDE Certification according to DIN VDE V 0884-17(IEC60747-17).
5000VRMS Isolation Rating per UL 1577.
