TPA8023 - 2V Input Isolated Amplifier

3PEAK

📥 Download Datasheet

TPA8023 Datasheet Preview — Preview of TPA8023 PDF

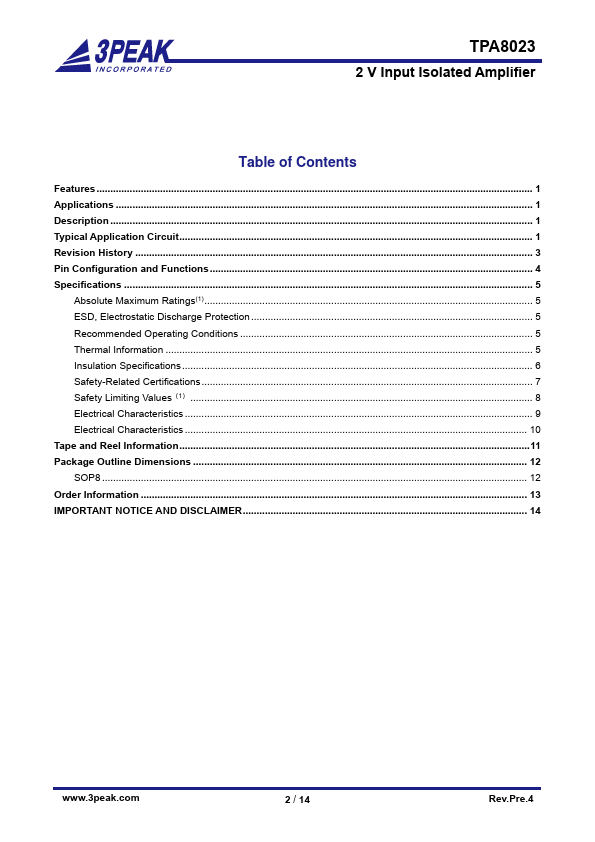

datasheet Preview Page 2

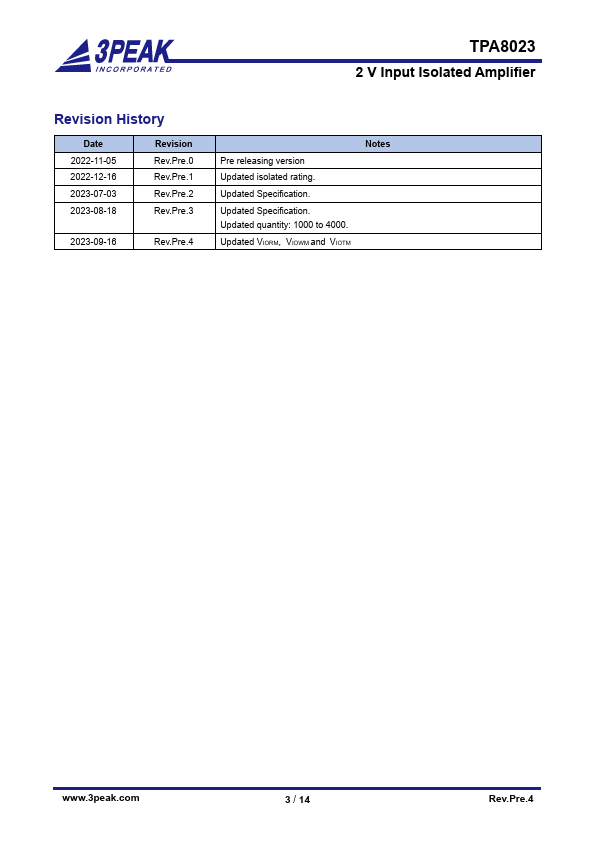

datasheet Preview Page 3

Datasheet Details

Part number	TPA8023
Manufacturer	3PEAK
File Size	462.29 KB
Description	2V Input Isolated Amplifier
Datasheet	TPA8023-3PEAK.pdf

TPA8023 Product details

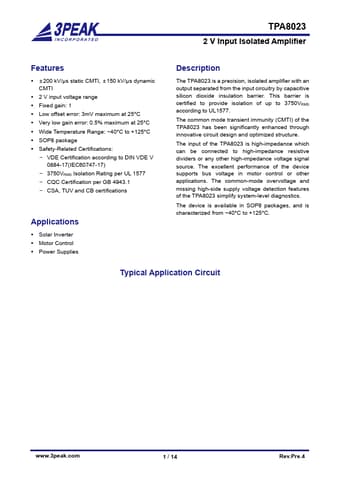

Description

The TPA8023 is a precision, isolated amplifier with an output separated from the input circuitry by capacitive silicon dioxide insulation barrier.

Features

±200 kV/μs static CMTI, ±150 kV/μs dynamic CMTI.
2 V input voltage range.
Fixed gain: 1.
Low offset error: 3mV maximum at 25°C.
Very low gain error: 0.5% maximum at 25°C.
Wide Temperature Range:.
40°C to +125°C.
SOP8 package.
Safety-Related Certifications:.
VDE Certification according to DIN VDE V 0884-17(IEC60747-17).
3750VRMS Isolation Rating per UL 1577.
CQC Certification per GB 4943.1.
CSA, TUV and CB certif.
