TPM8837C - 17-V H-Bridge Driver

3PEAK

The TPM8837C by 3PEAK is a 17-V H-Bridge Driver. Below is the official datasheet preview.

📥 Download Datasheet

TPM8837C 17-V H-Bridge Driver by 3PEAK - Datasheet Preview — Official preview page of the TPM8837C 17-V H-Bridge Driver datasheet (3PEAK).

Datasheet Details

Part number	TPM8837C
Manufacturer	3PEAK
File Size	760.90 KB
Description	17-V H-Bridge Driver
Datasheet	TPM8837C-3PEAK.pdf

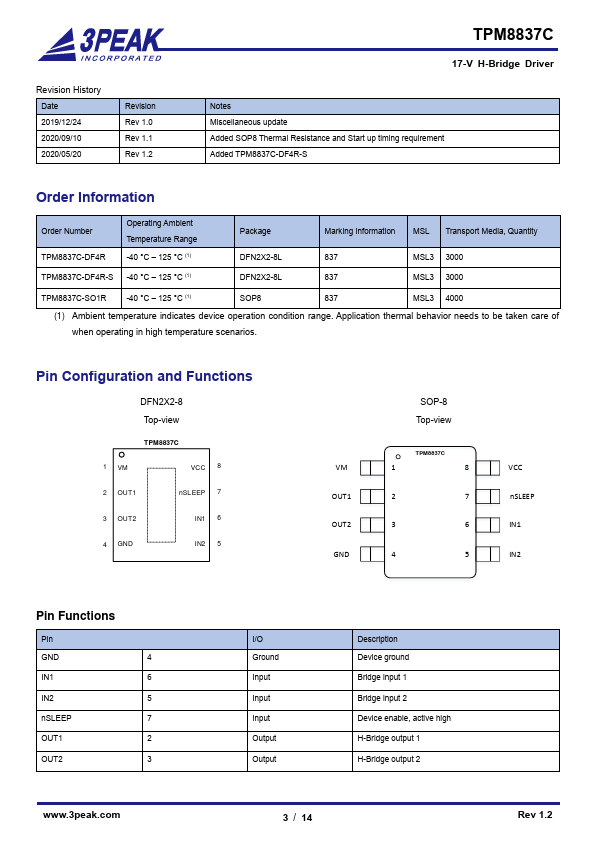

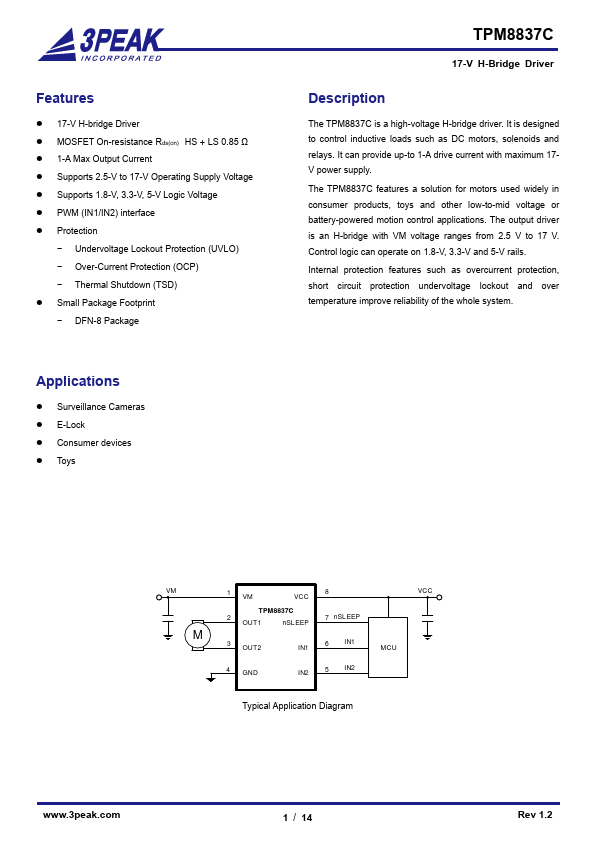

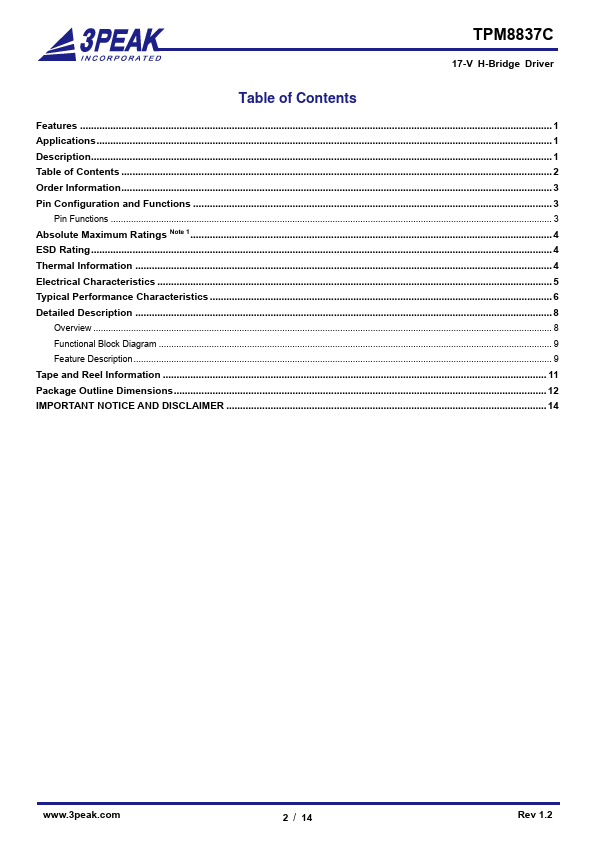

Additional preview pages of the TPM8837C datasheet.

TPM8837C Product details

Description

The TPM8837C is a high-voltage H-bridge driver.

Features

17-V H-bridge Driver.
MOSFET On-resistance Rds(on) HS + LS 0.85 Ω.
1-A Max Output Current.
Supports 2.5-V to 17-V Operating Supply Voltage.
Supports 1.8-V, 3.3-V, 5-V Logic Voltage.
PWM (IN1/IN2) interface.
Protection.
Undervoltage Lockout Protection (UVLO).
Over-Current Protection (OCP).
Thermal Shutdown (TSD).
Small Package Footprint.
DFN-8 Package.
