TPT1051Q

Automotive Fault Protected High-Speed CAN FD Transceiver

TPT1051Q Features

* Meets the ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5 Physical Layer Standards

* Supports CAN FD and Data Rating up to 5 Mbps

* Short Propagation Delay Times and Fast Loop Times

* 5-V Power Supply, I/O Voltage Range Supports 2.8-V to 5.5-V MCU Interface

TPT1051Q General Description

The TPT1051 is a CAN transceiver that meets the ISO11898 high-speed CAN (Controller Area Network) physical layer standard. The device is designed to be used in CAN FD networks up to 5 Mbps, with enhanced timing margin and higher data rates in long and highly loaded networks. As designed, the device .

TPT1051Q Datasheet (1.18 MB)

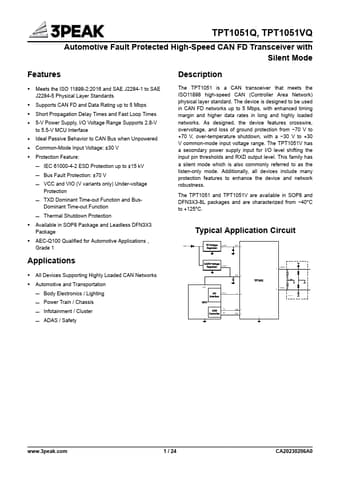

Preview of TPT1051Q PDF

Datasheet Details

Part number:

TPT1051Q

Manufacturer:

3PEAK

File Size:

1.18 MB

Description:

Automotive fault protected high-speed can fd transceiver.
