TPT1051V - High-Speed CAN Transceiver

3PEAK

📥 Download Datasheet

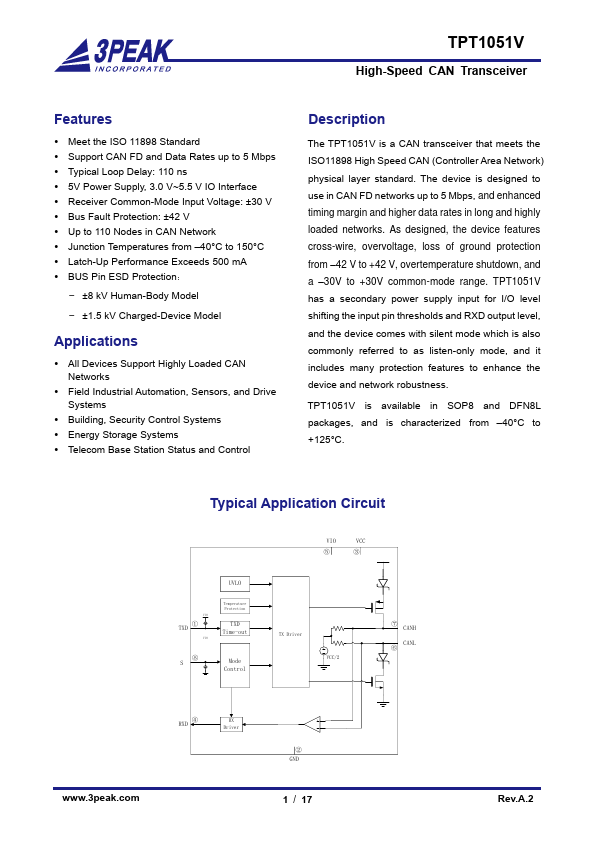

TPT1051V Datasheet Preview — Preview of TPT1051V PDF

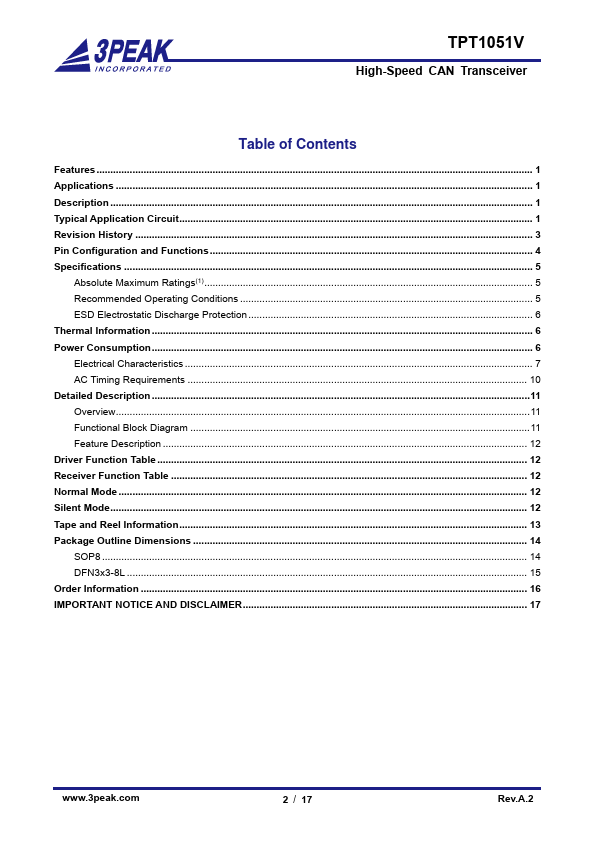

datasheet Preview Page 2

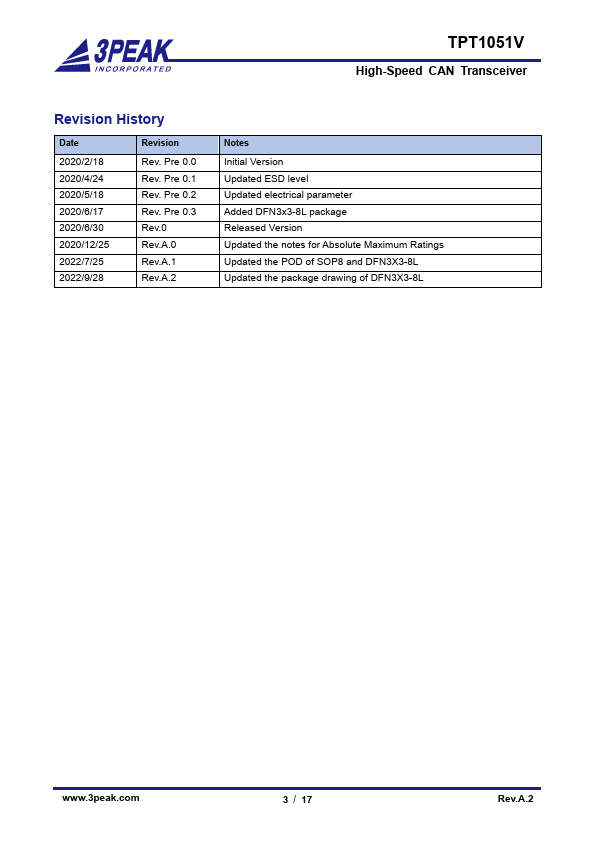

datasheet Preview Page 3

Datasheet Details

Part number	TPT1051V
Manufacturer	3PEAK
File Size	522.38 KB
Description	High-Speed CAN Transceiver
Datasheet	TPT1051V-3PEAK.pdf

TPT1051V Product details

Description

The TPT1051V is a CAN transceiver that meets the ISO11898 High Speed CAN (Controller Area Network) physical layer standard.

Features

Meet the ISO 11898 Standard.
Support CAN FD and Data Rates up to 5 Mbps.
Typical Loop Delay: 110 ns.
5V Power Supply, 3.0 V~5.5 V IO Interface.
Receiver Common-Mode Input Voltage: ±30 V.
Bus Fault Protection: ±42 V.
Up to 110 Nodes in CAN Network.
Junction Temperatures from.
40°C to 150°C.
Latch-Up Performance Exceeds 500 mA.
BUS Pin ESD Protection：.
±8 kV Human-Body Model.
±1.5 kV Charged-Device Model.
