TP2431 - 1.6MHz Bandwidth Micropower Low Noise Op-amps

TP2431 Description

3PEAK TP2431/TP2432 /TP2434 1.6MHz Bandwidth, Micropower Low Noise Op-amps .
Low Noise: 13nV/√Hz(f= 1kHz). Supply Current: 190μA/ch. Offset Voltage: 1 mV (max). Low THD+N: 0. Supply Range: 2.

TP2431 Applications

* Portable Equipment
* Battery-Powered Instruments
* Data Acquisition and Control
* Low-Voltage Signal Conditioning
* Communications
* Security The single TP2431, dual TP2432, and quad TP2434 operational amplifiers combine excellent DC accuracy with Rail-to-Rail operation at

📥 Download Datasheet

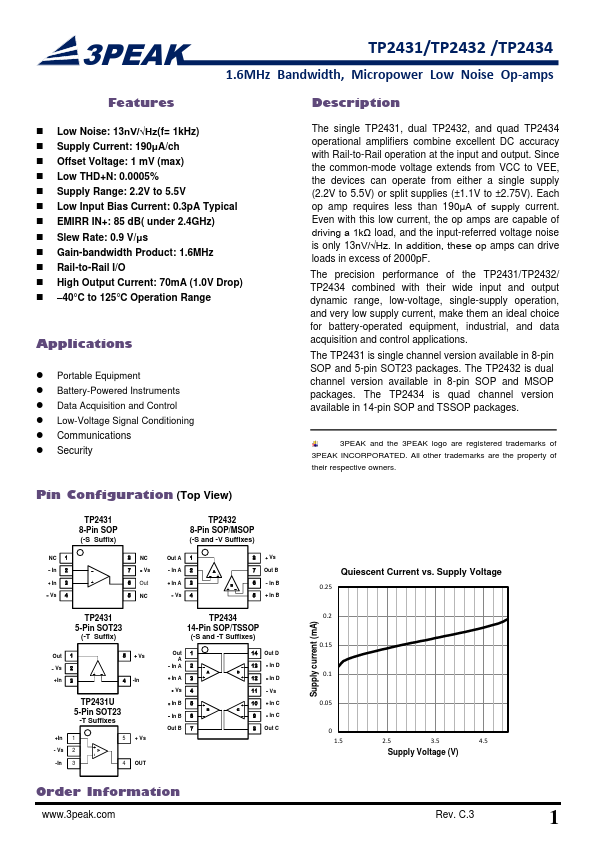

Preview of TP2431 PDF

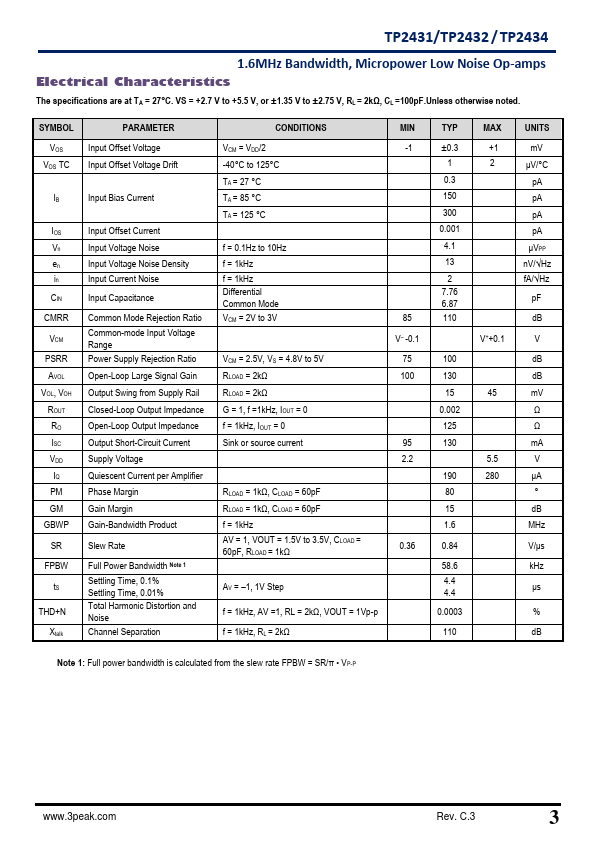

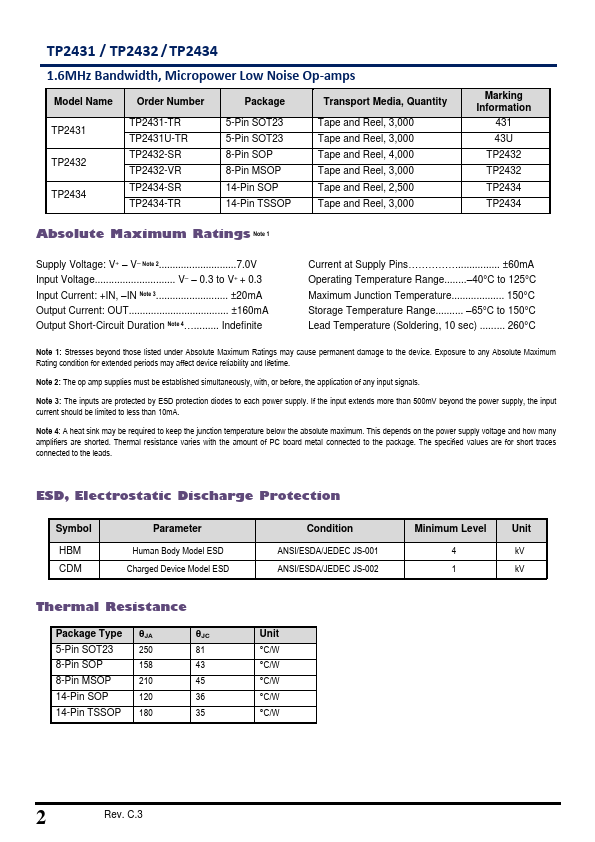

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TP2431
Manufacturer
3Peak
File Size
690.78 KB
Datasheet
TP2431-3Peak.pdf
Description
1.6MHz Bandwidth Micropower Low Noise Op-amps
